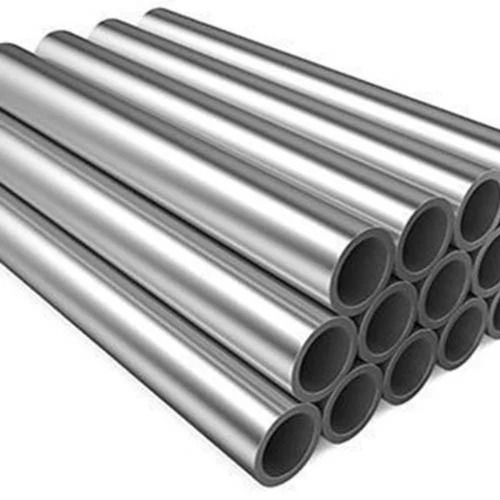

ASTM A312 Stainless Steel Pipe
Get In Touch
ASTM A312 Stainless Steel Pipe Manufacturer, Supplier & Exporter in India
Nishra Overseas is a leading manufacturer, stockist, supplier and exporter of ASTM A312 Stainless Steel Pipe in India, supplying seamless, welded, and cold-worked stainless steel pipe to industries across the country and to 50+ export markets from our facility in Mumbai. ASTM A312 covers heavily cold-worked, welded and seamless austenitic stainless steel pipe engineered for high-temperature and high-corrosion service, and is one of the most widely specified pipe standards in process piping, power, and oil & gas projects.
Stainless steel is used to manufacture a wide range of products, and pipe is one of the most important. ASTM A312 Stainless Steel Pipe is designed for use in high-temperature, high-corrosion service environments and is manufactured in welded, seamless, or cold-worked form. Pipes are available with diameters ranging from 1/8″ up to 30″, with wall thickness from Schedule 10S up to Schedule 80, and the welding process does not require filler metal to be added.
A312 pipe supplied by Nishra Overseas is free of contaminated iron filings and oxide scaling. Where a pipe is bright-annealed, no additional surface finishing, blasting, or pickling is required — though passivation is available on customer request. ASME SA312 material can be individually quenched or rapidly water-cooled after heat treatment, and our electric-fusion-welded pipes are less susceptible to localized corrosion compared to alternative processes. The low carbon content of these grades makes them easy to form and weld, while ASTM A312M is available in thicknesses from 1.2 mm to 2 mm, in regular lengths of 3, 6, and 10 meters, with brushed and satin finishes commonly used in architectural and commercial applications for their appearance.
ASTM A312 Seamless Stainless Steel Pipe is produced by pushing or pulling a raw material billet to form seamless pipe. Every product we supply is tested through hydrostatic testing, flattening testing, straightness checks, and surface quality inspection. ASTM A312 Tubing offers high yield and tensile strength along with high resistance to pressure, a melting point of approximately 1400°C, and a density of 8.0 g/cm³. These pipes withstand high mechanical stress and are reusable across multiple project applications — all pipe supplied by us is manufactured to international standards and dispatched with strict quality control.
Table of Contents
- ASTM A312 Stainless Steel Pipe Specification
- Types of ASTM A312 Stainless Steel Pipe
- Chemical Composition
- Mechanical Properties
- ASTM A312 Pipe Dimension Chart
- Applications of ASTM A312 Pipe
- ASTM A312 Pipe Manufacturer in India
- ASTM A312 Pipe Supplier in India
- ASTM A312 Pipe Exporter in India
- Why Choose Nishra Overseas
- FAQs
ASTM A312 Stainless Steel Pipe Specification
|
Parameter |
Specification |
|
Product Name |
ASTM A312 Stainless Steel Pipe |
|
Type |
Seamless Cold Drawn Tubes, Hot Finished Seamless Pipes, Welded Pipes, Fabricated Pipes |
|
Grades |
TP304, TP304L, TP304H, TP321, TP321H, TP316, TP316L, TP316Ti, TP310S, TP347, TP347H |
|
Size |
1/8″ NB to 24″ NB; 1/4″ OD to 24″ OD seamless tubes also available |
|
Length |
Up to 6 meters, custom cut lengths available |
|
Thickness |
1 mm to 20 mm; Sch 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
|
Finish |
No.1 Pickled Finish, No.4 Finish, BA Finish, Electropolished |
|
Our Network |
Mumbai, Chennai, Bangalore, Gujarat, India, Malaysia, Singapore, Saudi Arabia |
Types of ASTM A312 Stainless Steel Pipe
We manufacture and supply ASTM A312 TP304/316 pipe and tube across the following forms, standards, and finishes:
- Manufacturing Standards: ASTM A312, ASTM A213, ASTM A249, ASTM A554, and individual customer specifications. We have the flexibility to produce precision thick-wall or thin-wall A312 TP304/316 tubes and pipe in seamless, welded, and redrawn forms.
- Shapes & Forms: SS 304/316 Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipes/Tubes, Coiled Tubes, "U" Shape Tubes, Cake Coils, Hydraulic Tubes, Large Diameter Custom Size Pipe, and JIS SUS 304/316 Seamless Tubes.
- Pipe Types: Seamless / ERW / Welded / Fabricated / LSAW / Seam-Welded / Redrawn Pipe.
- End Protection: Plastic caps on all ends to prevent transit damage.
- Delivery Condition: Annealed & Pickled, Polished, Bright Annealed, Cold Drawn.
- Inspection & Test Reports: Mill Test Certificates (EN 10204 3.1), Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third-Party Inspection Reports, NABL Approved Lab Reports, Destructive and Non-Destructive Test Reports.
- Grades Supplied: ASTM A312 TP304, TP316L Seamless/Welded Pipes, SS304, SS304L, SS316, SS316L, SS310S, SS317L, and 446 Seamless/Welded Pipes.
- Additional Product Forms: Tubing Bends, High-Temperature Alloy Tubing, Precision Tube, Capillary Tube, Hot Finished Seamless Tubing (HFS), Cold Drawn Seamless Tubing (CDS), Electric Resistance Welded (ERW), Drawn Over Mandrel (DOM), Heat Exchanger Tube, and Finned Tube — all available in Round, Square, and Rectangular profiles.
- Testing Equipment: Direct-reading spectrograph, hydrostatic testing machine, X-ray detector, ultrasonic flaw detector, and magnetic particle detector.
- Certificates Offered: Manufacturer Test Certificate as per EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third-Party Inspection Report.
Chemical Composition — ASTM A312 Stainless Steel Pipe (% Max)
|
Grade |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mo |
|
TP304 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
18.0–20.0 |
8.0–11.0 |
– |
|
TP304H |
0.04–0.10 |
2.00 |
0.045 |
0.030 |
1.00 |
18.0–20.0 |
8.0–11.0 |
– |
|
TP304L |
0.035 max |
2.00 |
0.045 |
0.030 |
1.00 |
18.0–20.0 |
8.0–13.0 |
– |
|
TP310S |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
24.0–26.0 |
19.0–22.0 |
0.75 |
|
TP316 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0–18.0 |
11.0–14.0 |
2.00–3.00 |
|
TP316L |
0.035 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0–18.0 |
10.0–14.0 |
2.00–3.00 |
|
TP316H |
0.04–0.10 |
2.00 |
0.045 |
0.030 |
1.00 |
16.0–18.0 |
11.0–14.0 |
2.00–3.00 |
|
TP316Ti |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
16.0–18.0 |
10.0–14.0 |
2.00–3.00 |
|
TP321 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
17.0–19.0 |
9.0–12.0 |
– |
|
TP321H |
0.04–0.10 |
2.00 |
0.045 |
0.030 |
1.00 |
17.0–19.0 |
9.0–12.0 |
– |
|
TP347 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
17.0–19.0 |
9.0–13.0 |
– |
|
TP347H |
0.04–0.10 |
2.00 |
0.045 |
0.030 |
1.00 |
17.0–19.0 |
9.0–13.0 |
– |
Mechanical Properties — ASTM A312 Stainless Steel Pipe
|
Grade |
Heat Treatment |
Min. Solution Temp |
Tensile Strength Min |
Yield Strength Min |
Elongation Min |
|
TP304 |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP304L |
Solution |
1900°F (1040°C) |
70 Ksi (485 MPa) |
25 Ksi (170 MPa) |
35% |
|
TP304H |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP310S |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP316 |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP316L |
Solution |
1900°F (1040°C) |
70 Ksi (485 MPa) |
25 Ksi (170 MPa) |
35% |
|
TP316H |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP316Ti |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP321 |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP321H |
Solution |
Cold 2000°F / Hot 1925°F |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP347 |
Solution |
1900°F (1040°C) |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
35% |
|
TP347H |
Solution |
Cold 2000°F / Hot 1925°F |
75 Ksi (515 MPa) |
30 Ksi (205 MPa) |
– |
ASTM A312 Pipe Dimension Chart
Nominal wall thickness (inches) and weight (lbs/ft) by schedule — representative sizes from our full A312/A358/A376 dimension chart:
|
NPS |
OD (in) |
Sch 10S |
Sch 40S/STD |
Sch 80S/XH |
Sch 160 |
|
1/2 |
0.840 |
0.065 / 0.538 |
0.109 / 0.851 |
0.147 / 1.088 |
0.187 / 1.304 |
|
3/4 |
1.050 |
0.083 / 0.857 |
0.113 / 1.131 |
0.154 / 1.474 |
0.218 / 1.937 |
|
1 |
1.315 |
0.109 / 1.404 |
0.133 / 1.679 |
0.179 / 2.172 |
0.250 / 2.844 |
|
1-1/2 |
1.900 |
0.109 / 2.085 |
0.145 / 2.718 |
0.200 / 3.631 |
0.281 / 4.859 |
|
2 |
2.375 |
0.109 / 2.638 |
0.154 / 3.653 |
0.218 / 5.022 |
0.344 / 7.462 |
|
3 |
3.500 |
0.120 / 4.332 |
0.216 / 7.576 |
0.300 / 10.25 |
0.438 / 14.32 |
|
4 |
4.500 |
0.120 / 5.613 |
0.237 / 10.79 |
0.337 / 14.98 |
0.531 / 22.51 |
|
6 |
6.625 |
0.134 / 9.289 |
0.280 / 18.97 |
0.432 / 28.57 |
0.719 / 43.35 |
|
8 |
8.625 |
0.148 / 13.40 |
0.322 / 28.55 |
0.500 / 43.39 |
0.906 / 74.69 |
|
10 |
10.75 |
0.165 / 18.70 |
0.365 / 40.48 |
0.500 / 54.74 |
1.125 / 115.6 |
|
12 |
12.75 |
0.180 / 24.16 |
0.375 / 49.56 |
0.500 / 65.42 |
1.312 / 160.3 |
|
14 |
14.00 |
0.188 / 27.73 |
0.375 / 54.57 |
0.500 / 72.09 |
1.406 / 189.1 |
|
16 |
16.00 |
0.188 / 31.75 |
0.375 / 62.58 |
0.500 / 82.77 |
1.594 / 245.3 |
|
18 |
18.00 |
0.188 / 35.76 |
0.375 / 70.59 |
0.500 / 93.45 |
1.781 / 308.5 |
|
20 |
20.00 |
0.218 / 46.05 |
0.375 / 78.60 |
0.500 / 104.1 |
1.969 / 379.2 |
|
24 |
24.00 |
0.250 / 63.41 |
0.375 / 94.42 |
0.500 / 125.5 |
2.344 / 542.1 |
|
30 |
30.00 |
0.312 / 98.93 |
0.375 / 118.65 |
0.500 / 157.53 |
— |
|
36 |
36.00 |
0.312 / 118.92 |
0.375 / 142.68 |
0.500 / 189.57 |
— |
Values shown as wall thickness (in) / weight (lbs/ft). Full dimension chart covering all schedules from 5S to Double Extra Heavy, sizes up to 36″, available on request.
ASTM A312 Stainless Steel Pipe — Indicative Price Range
Pricing varies significantly by grade, schedule, form (seamless/welded), and order quantity. Indicative FOB ranges seen in the market:
|
Product |
Indicative FOB Price |
|
A312 TP304/304L Welded Pipe |
US $1,500 – 6,000 / Ton |
|
A312 TP304L Seamless Pipe (Sch 40) |
US $2,500 – 6,000 / Ton |
|
A312 TP316L Welded Pipe |
US $6 – 12 / Kg |
|
A312 TP321 Seamless Pipe |
US $1,000 – 6,000 / Ton |
|
A312 TP321H Welded Pipe |
US $700 – 1,600 / Ton |
|
A312 TP347H Seamless Pipe |
US $1,000 – 3,000 / Ton |
|
A312 TP304/316 Large-Size Seamless Pipe (Power Plant Grade) |
US $580 – 650 / Ton |
|
A312 Cold Drawn Seamless Heat Exchanger Tube |
US $1,100 – 1,600 / Ton |
|
A312 TP304/316L Pipe for Oil & Gas |
US $300 – 550 / Ton |
For an accurate, current quote based on your exact grade, schedule, and order quantity, please request a formal quotation — market prices fluctuate with raw material and freight costs.
Applications of ASTM A312 Stainless Steel Pipe
- Oil & gas transmission and process piping
- Power plant and boiler piping systems
- Chemical and petrochemical processing plants
- Heat exchanger and condenser tubing
- Water treatment and desalination plants
- Pharmaceutical and food processing lines
- Marine and shipbuilding piping
- Architectural applications (brushed/satin finish pipe for malls and public spaces)
ASTM A312 Stainless Steel Pipe Manufacturer in India
Nishra Overseas is a leading ASTM A312 Stainless Steel Pipe manufacturer in India, producing seamless, welded, and cold-worked pipe from 1/8″ to 24″ NB in grades from standard TP304/316L through high-temperature grades like TP321H and TP347H. Manufacturing directly in India allows us to control every stage of production — cold drawing, welding, heat treatment, and surface finishing — ensuring each pipe meets the required chemical composition, mechanical strength, and pressure rating before it leaves our facility.
As a manufacturer, we produce A312 pipe alongside related specifications including ASTM A213, A249, and A554, giving customers a single source for seamless tube, welded tube, and redrawn pipe requirements. Every batch is tested via hydrostatic, flattening, straightness, and surface-quality inspection, and is supported by mill test certificates, PMI reports, and third-party inspection on request — backed by our ISO 9001:2015 certified quality system.
ASTM A312 Stainless Steel Pipe Supplier in India
As a trusted ASTM A312 Stainless Steel Pipe supplier in India, we maintain ready stock across popular grades (TP304, TP304L, TP316, TP316L, TP321, TP347) and schedules (10S through 80S), enabling fast dispatch for EPC contractors, fabricators, and MRO buyers on tight project timelines. Our supply network covers Mumbai, Chennai, Bangalore, and Gujarat, backed by regional partners in Malaysia, Singapore, and Saudi Arabia.
Buying directly from a manufacturer-supplier — rather than through multiple trading intermediaries — reduces cost and lead time while ensuring complete batch traceability, from raw billet to finished, tested pipe. We supply both No.1 pickled and brushed/satin finish pipe for industrial and architectural applications respectively, with shortest-possible delivery available for shutdown, emergency, and project rush demands.
ASTM A312 Stainless Steel Pipe Exporter in India
Nishra Overseas is an established exporter of ASTM A312 Stainless Steel Pipe from India, shipping seamless and welded pipe to industrial buyers and EPC projects across 50+ countries. Manufacturing in India allows us to offer globally competitive FOB pricing without compromising on ASTM/ASME compliance, backed by certification aligned to American, European, Japanese, and Russian origin standards.
Our export documentation covers Mill Test Certificates as per EN 10204 3.1/3.1B/3.2, PED, DNV, and TUV certification where required, along with 100% radiography test reports and third-party inspection coordination. Whether the requirement is a trial shipment or a long-term supply contract, our export team manages packaging, logistics, and documentation end-to-end for smooth customs clearance at destination.
Why Choose Nishra Overseas
- ISO 9001:2015 certified manufacturing and quality processes
- Manufacturer, stockist, supplier, and exporter — all under one roof
- Full grade range: TP304, TP304L, TP304H, TP316, TP316L, TP316H, TP316Ti, TP321, TP321H, TP347, TP347H, TP310S
- Seamless, welded, ERW, LSAW, and cold-drawn forms available
- Sizes from 1/8″ to 36″ NB, wall thickness 1 mm to 20 mm
- Mill test certificates, PMI, and third-party inspection support on request
- Shortest-possible delivery for shutdown, emergency, and project rush demands
- Established export experience to 50+ countries
