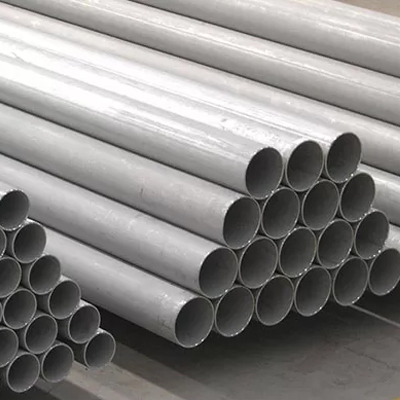

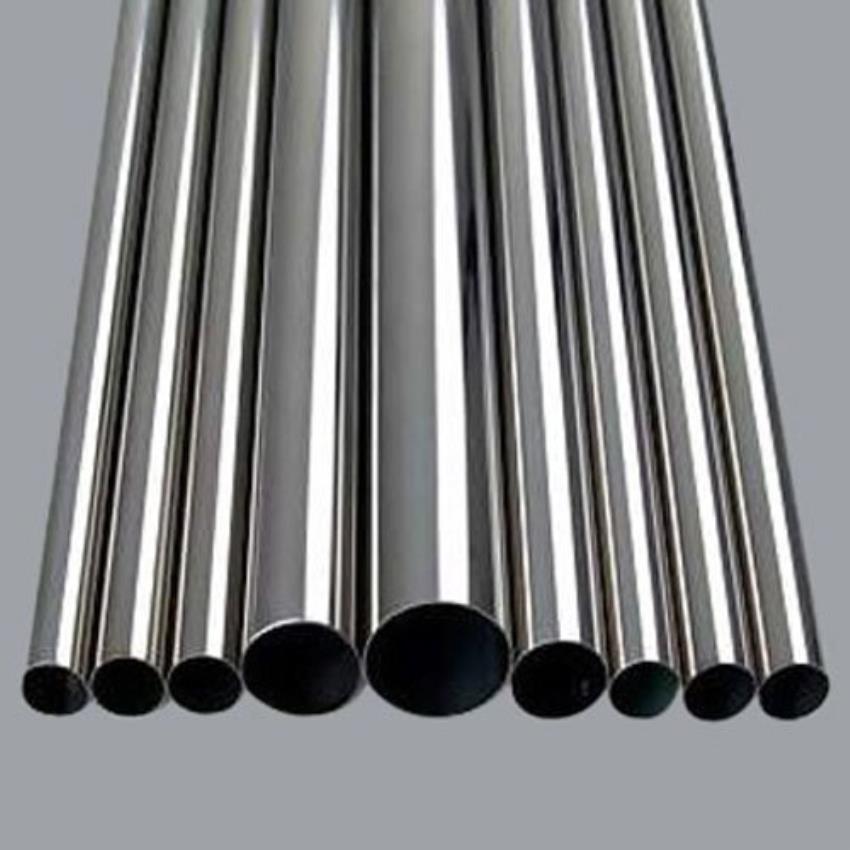

Stainless Steel 316 Pipe Manufacturer, Supplier & Exporter in India — Nishra Overseas
Nishra Overseas is a leading Stainless Steel 316 Pipe manufacturer in India, and a dependable 316 Pipe supplier and exporter in India, serving marine, chemical processing, pulp and paper, and general industrial buyers across domestic and international markets. Whether you're sourcing Stainless Steel 316 Pipe in India for a single project or for ongoing supply, our stock depth and manufacturing capability are built to support both.
316 is a standard molybdenum-bearing austenitic grade, and the molybdenum content is what sets it apart from 304: it gives 316 markedly better resistance to pitting and crevice corrosion, particularly in chloride-rich environments. Stainless Steel 316 pipe carries a minimum tensile strength of 515 MPa and a minimum yield strength of 205 MPa, with a density of around 8000 kg/m³ and elongation of up to 40%. Because it holds up so well in saline and marine conditions, 316 is often referred to simply as "marine-grade" stainless steel, and it remains reliable at operating temperatures approaching 1400°C at the material's melting point.
Seamless 316 pipe — drawn from a single piece of steel with no fillet or weld seam — is generally the stronger option and is available from roughly ½" up to 24" in outer diameter, while welded (ERW/fusion-welded) 316 pipe extends the size range further, up to 100" in some fusion-welded forms. Both forms are widely used in marine systems, pulp and paper processing, and chemical plant piping. As a trusted Stainless Steel 316 Pipe manufacturer, supplier, and exporter in India, Nishra Overseas' goal is straightforward: deliver certified, high-quality 316 pipe and tube at fair, competitive pricing, backed by dependable stock availability.
Table of Contents
- 316 Pipe Specification
- Technical Reference Data
- Available Product Types
- Indicative Pricing
- Packaging & Marking
- Applications
- Stock Range by Product
- Manufacturing & Processing Capabilities
- Stock Availability
- Dimensions, Weight & Pressure Ratings
- Stainless Steel 316 Pipe Manufacturer, Supplier & Exporter in India
- Frequently Asked Questions
316 Pipe Specification
- Outside Diameter: 6.00 mm to 914.4 mm, with sizes up to 24" NB held ex-stock.
- Wall Thickness Range: 0.3 mm to 50 mm, covering Schedules 5, 10, 40, 80, 80S, 160, XS, and XXS, along with non-standard thicknesses manufactured to order.
- Product Forms: Seamless pipe, ERW pipe, welded pipe, fabricated pipe, cold-drawn welded (CDW) tube, and LSAW/seam-welded/redrawn tube.
- Shapes: Round, square, rectangular, coiled, "U"-shaped, pancake coils, and hydraulic tubing.
- Length Options: Single random, double random, or cut-to-length. Ends can be supplied plain, beveled, or threaded.
- Surface Finish: 2B, No.4, No.1, or No.8 mirror polish, or any finish specified by the customer. End protection is provided using plastic caps as standard.
- Delivery Condition: Annealed and pickled, polished, bright annealed, or cold drawn.
- Documentation: Every consignment can be supported by mill test certificates, EN 10204 3.1 reports, chemical and mechanical test reports, PMI reports, visual and third-party inspection reports, NABL-accredited lab reports, and destructive/non-destructive testing records as required.
- Packing: Wooden crates, plastic wrapping, steel strapping, or custom packing per client instruction.
Governing Standards
- ASTM A312 / ASME SA312 — Seamless and straight-seam welded austenitic pipe for high-temperature and general corrosive service; no filler metal permitted.
- ASTM A358 — Electric fusion welded pipe for corrosive/high-temperature duty, typically up to 8" NB, with filler metal permitted.
- ASTM A790 — Seamless and straight-seam welded duplex (ferritic-austenitic) pipe, emphasizing stress corrosion cracking resistance.
- ASTM A409 — Straight- or spiral-seam EFW large-diameter light-wall pipe, 14"–30", Sch 5S/10S.
- ASTM A376 — Seamless austenitic pipe for high-temperature service.
- ASTM A813 / A814 — Welded austenitic pipe for high-temperature and general corrosive applications, including cold-worked variants.
Technical Reference Data
Chemical Composition (%)
|
Grade |
C (max) |
Mn (max) |
Si (max) |
P (max) |
S (max) |
Cr |
Mo |
Ni |
N (max) |
|
316 |
0.08 |
2.0 |
0.75 |
0.045 |
0.03 |
16.0–18.0 |
2.0–3.0 |
10.0–14.0 |
0.10 |
Mechanical Properties
|
Grade |
Tensile Strength (min, MPa) |
Yield Strength 0.2% Proof (min, MPa) |
Elongation (min, %) |
Hardness (HRB max) |
Hardness (HB max) |
|
316 / 316L |
515 |
205 |
40 |
95 |
217 |
Physical Properties
|
Grade |
Density (kg/m³) |
Elastic Modulus (GPa) |
Thermal Expansion (µm/m·°C, 0–100°C to 0–538°C) |
Thermal Conductivity (W/m·K) |
Specific Heat (J/kg·K) |
Electrical Resistivity (nΩ·m) |
|
316 |
8000 |
193 |
15.9 – 17.5 |
16.3 – 21.5 |
500 |
740 |
Cross-Reference to Other Standards
|
Grade |
UNS |
Old British (BS/En) |
Euronorm No. |
Euronorm Name |
Swedish SS |
Japanese JIS |
Russian GOST |
|
316 / 316L |
S31600 |
304S11 / 58E |
1.4401 |
X5CrNiMo17-12-2 |
2347 |
SUS 316 |
03Ch17N14M3 |
Governing designations: ASTM A312 / ASME SA312.
Available Product Types
Nishra Overseas maintains stock and production capability across a broad selection of 316 forms:
- PVC-filmed 316 pipe and tube
- Hot-rolled, high-luster 316 pipe for decorative applications
- ASTM 316 welded pipe
- Mirror-polished seamless 316 pipe
- Bright-finish seamless and welded 316 pipe
- 316 seamless pipe to ASTM A312
- Rectangular 316 pipe, prime quality
- Flexible corrugated 316 pipe with insulation layer
- Custom-size spiral-welded 316 pipe
- Thin-wall, large-diameter 316 tube
- Capillary and medical-grade 316 tube
- Schedule 40 seamless 316 pipe
- Cold-rolled seamless 316 pipe
- Sanitary-grade 316 pipe (ASTM A312)
- High-precision 316 pipe
- Coil tube and embossed/colored-finish 316 pipe
Indicative Pricing
Pricing for SS 316 pipe and tube varies by wall thickness, finish, order volume, and current raw-material rates — 316 typically carries a premium over 304/304H because of its molybdenum content. As a general market range:
|
Product Category |
Approximate Range |
|
Standard seamless/welded pipe |
US $700 – 3,900 / Ton |
|
Thick-wall / capillary / specialty pipe |
US $1,000 – 4,000 / Ton or Kg |
|
Mirror-polished / decorative pipe |
US $1,000 – 5,000 / Ton |
|
Corrugated / flexible pipe |
US $1 – 3.5 / Meter |
|
Piece-rate fittings and small components |
US $1 – 80 / Piece |
For an accurate, order-specific quotation based on size, schedule, finish, and quantity, please contact our sales team directly.
Packaging & Marking
Standard packaging uses wooden pallets or crates with waterproof paper and plastic wrapping, or seaworthy export packing for larger-diameter pipe, adjusted to match each client's requirements.
Every length of Nishra Overseas 316 pipe is marked along its full length with:
- Nominal pipe size (NB)
- Schedule / wall thickness
- Governing specification and grade
- Method of manufacture (seamless or welded)
- Heat number
- Manufacturer's name or symbol
Test Certification
- Manufacturer's Test Certificate
- IBR Test Certificate (Form III-D)
- Laboratory Test Certificate from a government-approved lab
- Third-party inspection certification, with excise gate pass where applicable for Modvat benefit
Applications
SS 316 pipe from Nishra Overseas is used across:
- Marine systems and marine-grade piping, where chloride resistance is critical
- Pulp and paper industry equipment
- Chemical processing plants
- Heat exchangers and boiler tube
- Food processing equipment
- Kitchen benches, sinks, troughs, and appliances
- General construction
- Threaded fasteners
- Chemical containers and transport vessels
- Automotive trim
- Architectural applications
- Railway cars
- Woven and welded screens for mining, quarrying, and water filtration
Stock Range by Product
Nishra Overseas stocks the following 316 product families:
- Shapes: Square pipe · Round pipe · Rectangular pipe
- Finishes: Colour-coated pipe · Ornamental tube · Electropolished pipe
- Specialty Profiles: Slot round pipe · Triangular tube · Hexagonal tube
- Fabricated Forms: Handrail tube · U-shaped tube · Thin-wall seamless tube
- Precision Products: Inner/outer polished pipe · Capillary tube · Seamless tube
- Standards-Referenced Products: AISI 316 seamless pipe · AISI 316 welded pipe · SUS 316 seamless pipe · AISI 316 ERW pipe · UNS S31600 pipe · DIN 1.4401 pipe
Manufacturing & Processing Capabilities
- Structural Cutting — Pipe, tube, tubing, and square/rectangular/round sections cut from 1/16" up to 28" diameter.
- Tubular Cutting — Ornamental tube, tubing, and hollow bar, in the same 1/16"–28" diameter range.
- Production Cutting — Precision cutting for diameters up to 4", carried out on Amada production equipment for tight-tolerance work.
- Structural Polishing — OD and ID polishing available across the full tubular product range.
Stock Availability
|
Product Form |
OD Range |
Wall Thickness Range |
|
General pipe stock |
6 mm – 630 mm |
0.5 mm – 30 mm |
|
Round pipe (large size) |
12.7 mm – 300 mm |
0.5 mm – 30 mm |
|
Rectangular pipe |
10×20 mm – 100×200 mm |
0.5 mm – 30 mm |
|
Standard tube |
6 mm – 630 mm |
0.5 mm – 30 mm |
|
Polished tube |
12.7 mm – 250 mm |
0.5 mm – 30 mm |
|
Precision tube |
16 mm – 85 mm |
0.5 mm – 3.0 mm |
|
Capillary tube |
13 mm – 85 mm |
0.5 mm – 2.0 mm |
|
Instrumentation tube |
20 mm – 200 mm |
0.5 mm – 2.0 mm |
|
Fine-bore tube |
22×0.7 mm – 108×2.0 mm |
0.5 mm – 2.0 mm |
|
Hydraulic tube |
12.5 mm – 203.2 mm |
1.0 mm – 5 mm |
|
Thin-wall tube |
0.28 mm – 10 mm |
0.08 mm – 1.2 mm |
|
Cold-drawn tube |
6 mm – 430 mm |
0.8 mm – 30 mm |
Schedule Availability by Nominal Bore
|
NB Size |
Sch 5 |
Sch 10 |
Sch 40 |
Sch 80 |
Sch 160 |
|
1/8"–3/8" |
✓ |
✓ |
✓ |
✓ |
— |
|
1/2"–4" |
✓ |
✓ |
✓ |
✓ |
✓ |
|
5" |
✓ |
✓ |
✓ |
✓ |
— |
|
6" |
✓ |
✓ |
✓ |
✓ |
✓ |
Dimensions, Weight & Pressure Ratings
Weight per 100 mm Length by OD and Wall Thickness (kg, indicative — seamless tube)
|
OD (in) |
OD (mm) |
0.7mm |
0.9mm |
1.2mm |
1.5mm |
2.0mm |
3.0mm |
|
3/8" |
9.5 |
0.94 |
1.18 |
1.51 |
1.82 |
— |
— |
|
1/2" |
12.7 |
1.28 |
1.61 |
2.10 |
2.55 |
— |
— |
|
3/4" |
19.1 |
1.96 |
2.49 |
3.26 |
4.01 |
— |
— |
|
1" |
25.4 |
2.63 |
3.35 |
4.41 |
5.45 |
— |
— |
|
1.5" |
38.1 |
3.98 |
5.09 |
6.73 |
8.34 |
— |
— |
|
2" |
50.8 |
— |
6.82 |
9.04 |
11.24 |
14.83 |
21.79 |
|
3" |
76.2 |
— |
10.30 |
13.68 |
17.03 |
22.55 |
33.37 |
|
4" |
101.6 |
— |
— |
18.31 |
22.82 |
30.27 |
44.95 |
Figures are per 100 mm cut length for seamless tube; confirm exact weights against mill data before quoting large orders.
SS 316 Pressure Rating by Schedule and Temperature (psi)
|
Pipe Size |
Schedule |
100°F |
200°F |
300°F |
400°F |
500°F |
600°F |
650°F |
700°F |
750°F |
|
1" |
40 |
3048 |
2629 |
2362 |
2171 |
2019 |
1924 |
1867 |
1824 |
1810 |
|
1" |
80 |
4213 |
3634 |
3265 |
3002 |
2791 |
2659 |
2580 |
2528 |
2501 |
|
1" |
160 |
6140 |
5296 |
4759 |
4375 |
4068 |
3876 |
3761 |
3684 |
3646 |
|
1.5" |
40 |
2257 |
1947 |
1750 |
1608 |
1496 |
1425 |
1383 |
1354 |
1340 |
|
1.5" |
80 |
3182 |
2744 |
2466 |
2267 |
2108 |
2009 |
1949 |
1909 |
1889 |
|
1.5" |
160 |
4619 |
3984 |
3580 |
3291 |
3060 |
2916 |
2829 |
2772 |
2743 |
|
2" |
40 |
1902 |
1640 |
1474 |
1355 |
1260 |
1201 |
1165 |
1141 |
1129 |
|
2" |
80 |
2747 |
2369 |
2129 |
1957 |
1820 |
1734 |
1682 |
1648 |
1631 |
|
2" |
160 |
4499 |
3880 |
3486 |
3205 |
2980 |
2840 |
2755 |
2699 |
2671 |
|
3" |
40 |
1806 |
1558 |
1400 |
1287 |
1196 |
1140 |
1106 |
1084 |
1072 |
|
3" |
80 |
2553 |
2202 |
1979 |
1819 |
1691 |
1612 |
1564 |
1532 |
1516 |
|
3" |
160 |
3840 |
3312 |
2976 |
2736 |
2544 |
2424 |
2352 |
2304 |
2280 |
|
4" |
40 |
1531 |
1321 |
1187 |
1091 |
1014 |
967 |
938 |
919 |
909 |
|
4" |
80 |
2213 |
1909 |
1715 |
1577 |
1466 |
1397 |
1355 |
1328 |
1314 |
|
4" |
160 |
3601 |
3106 |
2791 |
2566 |
2386 |
2273 |
2206 |
2161 |
2138 |
|
5" |
40 |
1342 |
1158 |
1040 |
956 |
889 |
847 |
822 |
805 |
797 |
|
5" |
80 |
1981 |
1709 |
1535 |
1411 |
1312 |
1250 |
1213 |
1189 |
1176 |
|
5" |
160 |
3414 |
2945 |
2646 |
2433 |
2262 |
2155 |
2091 |
2049 |
2027 |
|
6" |
40 |
1219 |
1052 |
945 |
869 |
808 |
770 |
747 |
732 |
724 |
|
6" |
80 |
1913 |
1650 |
1483 |
1363 |
1267 |
1208 |
1172 |
1148 |
1136 |
|
6" |
160 |
3289 |
2836 |
2549 |
2343 |
2179 |
2076 |
2014 |
1973 |
1953 |
|
8" |
40 |
1073 |
926 |
832 |
765 |
711 |
678 |
657 |
644 |
637 |
|
8" |
80 |
1692 |
1459 |
1311 |
1205 |
1121 |
1068 |
1036 |
1015 |
1005 |
|
8" |
160 |
3175 |
2738 |
2460 |
2262 |
2103 |
2004 |
1944 |
1905 |
1885 |
|
10" |
40 |
974 |
840 |
755 |
694 |
645 |
615 |
596 |
584 |
578 |
|
10" |
80 |
1609 |
1388 |
1247 |
1147 |
1066 |
1016 |
986 |
966 |
956 |
|
10" |
160 |
3147 |
2714 |
2439 |
2242 |
2085 |
1986 |
1927 |
1880 |
1868 |
Note: values above are indicative allowable pressures per common SS 316 reference tables and should be verified against project-specific engineering data before use in design calculations.
Stainless Steel 316 Pipe Manufacturer, Supplier & Exporter in India
Nishra Overseas is a manufacturer, stockist, supplier, and exporter of SS 316 seamless and welded pipes, tubes, and fittings, supplying marine, chemical, and process industries, EPC contractors, and trading partners across India and abroad. Whatever stage of the supply chain you're sourcing from, Nishra Overseas covers it end to end.
Stainless Steel 316 Pipe Manufacturer in India
As a Stainless Steel 316 Pipe manufacturer in India, Nishra Overseas produces seamless and welded 316 pipe to ASTM A312 / ASME SA312 and related standards, with non-standard diameters, wall thicknesses, lengths, and end finishes made to drawing or specification on request. Every batch is traceable to a heat number, with mill test certificates, EN 10204 3.1 documentation, and third-party inspection available wherever the order calls for it.
Stainless Steel 316 Pipe Supplier in India
As a Stainless Steel 316 Pipe supplier in India, Nishra Overseas holds ready inventory across common and non-standard sizes out of our warehouse, so smaller or urgent orders can be fulfilled without waiting on a fresh production run. Our technical team helps match pipe schedule, wall thickness, and surface finish to your specific corrosion, pressure, and temperature requirements before you place an order — particularly important for 316's marine and chloride-exposure applications.
Stainless Steel 316 Pipe Exporter in India
As a Stainless Steel 316 Pipe exporter in India, Nishra Overseas packs every export consignment to seaworthy standard, with documentation prepared in advance for customs clearance in the destination market. We regularly ship 316 pipe and tube to buyers across the Middle East, Southeast Asia, Africa, and Europe, alongside our domestic supply base.
Industries served: Marine and offshore, chemical processing, pulp and paper, food and beverage, heat exchanger and boiler manufacturing, and architectural fabrication.
Get a quote: Share your required size, schedule, length, and quantity, and the Nishra Overseas team — your Stainless Steel 316 Pipe manufacturer, supplier, and exporter in India — will respond with current pricing, lead time, and available certification for your order.
