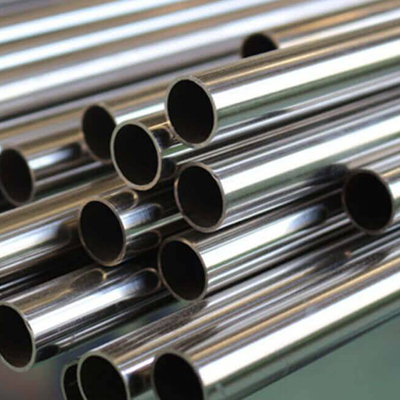

Stainless Steel 316L Pipe Manufacturer, Supplier & Exporter in India — Nishra Overseas

Nishra Overseas is a leading Stainless Steel 316L Pipe manufacturer in India, and a dependable 316L Pipe supplier and exporter in India, serving marine, chemical processing, pharmaceutical, and welded-fabrication buyers across domestic and international markets. Whether you're sourcing Stainless Steel 316L Pipe in India for a single project or for ongoing supply, our stock depth and manufacturing capability are built to support both.

316L is the low-carbon version of 316, carrying the same chromium-nickel-molybdenum backbone but with carbon capped at a much lower level. That single change matters more than it sounds: lower carbon means far less risk of carbide precipitation at the heat-affected zone during welding, so 316L holds onto its corrosion resistance after fabrication instead of becoming vulnerable to sensitization the way higher-carbon grades can. Per ASTM A312, Stainless Steel 316L pipe carries a minimum tensile strength of around 485 MPa and a minimum yield strength of around 170 MPa, with roughly 40% elongation and a density near 8000 kg/m³ — figures worth confirming against your specific mill certificate, since exact minimums can shift slightly by product form and heat.

Like standard 316, the molybdenum content gives 316L strong resistance to pitting and crevice corrosion in chloride-rich and marine environments. Its austenitic structure also performs well down to cryogenic temperatures, which — combined with its excellent weldability — makes 316L a common choice wherever a pipe will be welded in the field and then exposed to demanding chemical or marine service: heat exchangers, dyeing equipment, pharmaceutical piping, and general process lines. As a trusted Stainless Steel 316L Pipe manufacturer, supplier, and exporter in India, Nishra Overseas' goal is straightforward: deliver certified, high-quality 316L pipe and tube at fair, competitive pricing, backed by dependable stock availability.

Table of Contents

1. 316L Pipe Specification
2. Technical Reference Data
3. Available Product Types
4. Indicative Pricing
5. Packaging & Marking
6. Applications
7. Stock Range by Product
8. Manufacturing & Processing Capabilities
9. Stock Availability
10. Dimensions, Weight & Pressure Ratings
11. Stainless Steel 316L Pipe Manufacturer, Supplier & Exporter in India
12. Frequently Asked Questions

316L Pipe Specification

• Outside Diameter: 6.00 mm to 914.4 mm, with sizes up to 24" NB held ex-stock.
• Wall Thickness Range: 0.3 mm to 50 mm, covering Schedules 5, 10, 40, 80, 80S, 160, XS, and XXS, along with non-standard thicknesses manufactured to order.
• Product Forms: Seamless pipe, ERW pipe, welded pipe, fabricated pipe, cold-drawn welded (CDW) tube, and LSAW/seam-welded/redrawn tube.
• Shapes: Round, square, rectangular, coiled, "U"-shaped, pancake coils, and hydraulic tubing.
• Length Options: Single random, double random, or cut-to-length. Ends can be supplied plain, beveled, or threaded.
• Surface Finish: 2B, No.4, No.1, or No.8 mirror polish, or any finish specified by the customer. End protection is provided using plastic caps as standard.
• Delivery Condition: Annealed and pickled, polished, bright annealed, or cold drawn.
• Documentation: Every consignment can be supported by mill test certificates, EN 10204 3.1 reports, chemical and mechanical test reports, PMI reports, visual and third-party inspection reports, NABL-accredited lab reports, and destructive/non-destructive testing records as required.
• Packing: Wooden crates, plastic wrapping, steel strapping, or custom packing per client instruction.

Technical Reference Data

Chemical Composition (%)

Grade	C (max)	Mn (max)	Si (max)	P (max)	S (max)	Cr	Mo	Ni	N (max)
316L	0.03	2.0	0.75	0.045	0.03	16.0–18.0	2.0–3.0	10.0–14.0	0.10

The defining difference from standard 316 is the carbon ceiling — 0.03% max for 316L versus 0.08% max for 316 — which is what protects weld-zone corrosion resistance.

Mechanical Properties

Grade	Tensile Strength (min, MPa)	Yield Strength 0.2% Proof (min, MPa)	Elongation (min, %)	Hardness (HRB max)	Hardness (HB max)
316L	~485	~170	40	95	217

Confirm exact figures against your mill test certificate — minimums can vary slightly by product specification (ASTM A312 vs A358 vs A790, etc.) and product form.

Physical Properties

Grade	Density (kg/m³)	Elastic Modulus (GPa)	Thermal Expansion (µm/m·°C, 0–100°C to 0–538°C)	Thermal Conductivity (W/m·K)	Specific Heat (J/kg·K)	Electrical Resistivity (nΩ·m)
316L	8000	193	15.9 – 17.5	16.3 – 21.5	500	740

Cross-Reference to Other Standards

Grade	UNS	Old British (BS/En)	Euronorm No.	Euronorm Name	Swedish SS	Japanese JIS
316L	S31603	304S11 / 58E	1.4404 / 1.4435	X2CrNiMo17-12-2	2348	SUS 316L

Governing designations: ASTM A312 / ASME SA312. 316L is also produced to ASTM A358, A790, A409, A376, A813, and A814 for specific weld types and service conditions.

Available Product Types

Nishra Overseas maintains stock and production capability across a broad selection of 316L forms:

• PVC-filmed 316L pipe and tube
• Hot-rolled, high-luster 316L pipe for decorative applications
• ASTM 316L welded pipe
• Mirror-polished seamless 316L pipe
• Bright-finish seamless and welded 316L pipe
• 316L seamless pipe to ASTM A312
• Rectangular 316L pipe, prime quality
• Flexible corrugated 316L pipe with insulation layer
• Custom-size spiral-welded 316L pipe
• Thin-wall, large-diameter 316L tube
• Capillary and medical-grade 316L tube
• Schedule 40 seamless 316L pipe
• Cold-rolled seamless 316L pipe
• Sanitary-grade 316L pipe (ASTM A312)
• High-precision 316L pipe
• Coil tube and embossed/colored-finish 316L pipe

Indicative Pricing

Pricing for SS 316L pipe and tube varies by wall thickness, finish, order volume, and current raw-material rates. As a general market range:

Product Category	Approximate Range
Standard seamless/welded pipe	US $700 – 3,900 / Ton
Thick-wall / capillary / specialty pipe	US $1,000 – 4,000 / Ton or Kg
Mirror-polished / decorative pipe	US $1,000 – 5,000 / Ton
Corrugated / flexible pipe	US $1 – 3.5 / Meter
Piece-rate fittings and small components	US $1 – 80 / Piece

For an accurate, order-specific quotation based on size, schedule, finish, and quantity, please contact our sales team directly.

Packaging & Marking

Standard packaging uses wooden pallets or crates with waterproof paper and plastic wrapping, or seaworthy export packing for larger-diameter pipe, adjusted to match each client's requirements.

Every length of Nishra Overseas 316L pipe is marked along its full length with:

• Nominal pipe size (NB)
• Schedule / wall thickness
• Governing specification and grade
• Method of manufacture (seamless or welded)
• Heat number
• Manufacturer's name or symbol

Test Certification

• Manufacturer's Test Certificate
• IBR Test Certificate (Form III-D)
• Laboratory Test Certificate from a government-approved lab
• Third-party inspection certification, with excise gate pass where applicable for Modvat benefit

Applications

SS 316L pipe from Nishra Overseas is used across:

• Marine and offshore piping exposed to chloride environments
• Heat exchangers and dyeing equipment
• Pharmaceutical and chemical processing lines
• Welded fabrication where post-weld corrosion resistance matters
• Cryogenic and low-temperature service
• Food processing equipment
• Kitchen benches, sinks, troughs, and appliances
• General construction
• Threaded fasteners
• Chemical containers and transport vessels
• Automotive trim
• Architectural applications
• Railway cars
• Woven and welded screens for mining, quarrying, and water filtration

Stock Range by Product

Nishra Overseas stocks the following 316L product families:

• Shapes: Square pipe · Round pipe · Rectangular pipe
• Finishes: Colour-coated pipe · Ornamental tube · Electropolished pipe
• Specialty Profiles: Slot round pipe · Triangular tube · Hexagonal tube
• Fabricated Forms: Handrail tube · U-shaped tube · Thin-wall seamless tube
• Precision Products: Inner/outer polished pipe · Capillary tube · Seamless tube
• Standards-Referenced Products: AISI 316L seamless pipe · AISI 316L welded pipe · SUS 316L seamless pipe · AISI 316L ERW pipe · UNS S31603 pipe · DIN 1.4404 pipe

Manufacturing & Processing Capabilities

• Structural Cutting — Pipe, tube, tubing, and square/rectangular/round sections cut from 1/16" up to 28" diameter.
• Tubular Cutting — Ornamental tube, tubing, and hollow bar, in the same 1/16"–28" diameter range.
• Production Cutting — Precision cutting for diameters up to 4", carried out on Amada production equipment for tight-tolerance work.
• Structural Polishing — OD and ID polishing available across the full tubular product range.
• Heavy-wall 316L square pipe and ERW pipe can also be produced to ANSI-referenced dimensional standards on request.

Stock Availability

Product Form	OD Range	Wall Thickness Range
General pipe stock	6 mm – 630 mm	0.5 mm – 30 mm
Round pipe (large size)	12.7 mm – 300 mm	0.5 mm – 30 mm
Rectangular pipe	10×20 mm – 100×200 mm	0.5 mm – 30 mm
Standard tube	6 mm – 630 mm	0.5 mm – 30 mm
Polished tube	12.7 mm – 250 mm	0.5 mm – 30 mm
Precision tube	16 mm – 85 mm	0.5 mm – 3.0 mm
Capillary tube	13 mm – 85 mm	0.5 mm – 2.0 mm
Instrumentation tube	20 mm – 200 mm	0.5 mm – 2.0 mm
Fine-bore tube	22×0.7 mm – 108×2.0 mm	0.5 mm – 2.0 mm
Hydraulic tube	12.5 mm – 203.2 mm	1.0 mm – 5 mm
Thin-wall tube	0.28 mm – 10 mm	0.08 mm – 1.2 mm
Cold-drawn tube	6 mm – 430 mm	0.8 mm – 30 mm

Schedule Availability by Nominal Bore

NB Size	Sch 5	Sch 10	Sch 40	Sch 80	Sch 160
1/8"–3/8"	✓	✓	✓	✓	—
1/2"–4"	✓	✓	✓	✓	✓
5"	✓	✓	✓	✓	—
6"	✓	✓	✓	✓	✓

Dimensions, Weight & Pressure Ratings

Weight per 100 mm Length by OD and Wall Thickness (kg, indicative — seamless tube)

OD (in)	OD (mm)	0.7mm	0.9mm	1.2mm	1.5mm	2.0mm	3.0mm
3/8"	9.5	0.94	1.18	1.51	1.82	—	—
1/2"	12.7	1.28	1.61	2.10	2.55	—	—
3/4"	19.1	1.96	2.49	3.26	4.01	—	—
1"	25.4	2.63	3.35	4.41	5.45	—	—
1.5"	38.1	3.98	5.09	6.73	8.34	—	—
2"	50.8	—	6.82	9.04	11.24	14.83	21.79
3"	76.2	—	10.30	13.68	17.03	22.55	33.37
4"	101.6	—	—	18.31	22.82	30.27	44.95

Figures are per 100 mm cut length for seamless tube; confirm exact weights against mill data before quoting large orders.

SS 316L Pressure Rating by Schedule and Temperature (psi)

Pipe Size	Schedule	100°F	200°F	300°F	400°F	500°F	600°F	650°F	700°F	750°F
1"	40	3048	2629	2362	2171	2019	1924	1867	1824	1810
1"	80	4213	3634	3265	3002	2791	2659	2580	2528	2501
1"	160	6140	5296	4759	4375	4068	3876	3761	3684	3646
1.5"	40	2257	1947	1750	1608	1496	1425	1383	1354	1340
1.5"	80	3182	2744	2466	2267	2108	2009	1949	1909	1889
1.5"	160	4619	3984	3580	3291	3060	2916	2829	2772	2743
2"	40	1902	1640	1474	1355	1260	1201	1165	1141	1129
2"	80	2747	2369	2129	1957	1820	1734	1682	1648	1631
2"	160	4499	3880	3486	3205	2980	2840	2755	2699	2671
3"	40	1806	1558	1400	1287	1196	1140	1106	1084	1072
3"	80	2553	2202	1979	1819	1691	1612	1564	1532	1516
3"	160	3840	3312	2976	2736	2544	2424	2352	2304	2280
4"	40	1531	1321	1187	1091	1014	967	938	919	909
4"	80	2213	1909	1715	1577	1466	1397	1355	1328	1314
4"	160	3601	3106	2791	2566	2386	2273	2206	2161	2138
5"	40	1342	1158	1040	956	889	847	822	805	797
5"	80	1981	1709	1535	1411	1312	1250	1213	1189	1176
5"	160	3414	2945	2646	2433	2262	2155	2091	2049	2027
6"	40	1219	1052	945	869	808	770	747	732	724
6"	80	1913	1650	1483	1363	1267	1208	1172	1148	1136
6"	160	3289	2836	2549	2343	2179	2076	2014	1973	1953
8"	40	1073	926	832	765	711	678	657	644	637
8"	80	1692	1459	1311	1205	1121	1068	1036	1015	1005
8"	160	3175	2738	2460	2262	2103	2004	1944	1905	1885
10"	40	974	840	755	694	645	615	596	584	578
10"	80	1609	1388	1247	1147	1066	1016	986	966	956
10"	160	3147	2714	2439	2242	2085	1986	1927	1880	1868

Note: values above are indicative allowable pressures per common reference tables for this pipe schedule/size family and should be verified against project-specific engineering data — and against your grade's actual allowable stress values — before use in design calculations. 316L's lower strength versus 316 can mean a slightly reduced allowable pressure at a given wall thickness; check with your engineer.

Stainless Steel 316L Pipe Manufacturer, Supplier & Exporter in India

Nishra Overseas is a manufacturer, stockist, supplier, and exporter of SS 316L seamless and welded pipes, tubes, and fittings, supplying marine, chemical, pharmaceutical, and process industries, EPC contractors, and trading partners across India and abroad. Whatever stage of the supply chain you're sourcing from, Nishra Overseas covers it end to end.

Stainless Steel 316L Pipe Manufacturer in India

As a Stainless Steel 316L Pipe manufacturer in India, Nishra Overseas produces seamless and welded 316L pipe to ASTM A312 / ASME SA312 and related standards, with non-standard diameters, wall thicknesses, lengths, and end finishes made to drawing or specification on request. Every batch is traceable to a heat number, with mill test certificates, EN 10204 3.1 documentation, and third-party inspection available wherever the order calls for it.

Stainless Steel 316L Pipe Supplier in India

As a Stainless Steel 316L Pipe supplier in India, Nishra Overseas holds ready inventory across common and non-standard sizes out of our warehouse, so smaller or urgent orders can be fulfilled without waiting on a fresh production run. Our technical team helps match pipe schedule, wall thickness, and surface finish to your specific weld, corrosion, and temperature requirements before you place an order — particularly relevant for 316L's welded-fabrication and marine applications.

Stainless Steel 316L Pipe Exporter in India

As a Stainless Steel 316L Pipe exporter in India, Nishra Overseas packs every export consignment to seaworthy standard, with documentation prepared in advance for customs clearance in the destination market. We regularly ship 316L pipe and tube to buyers across the Middle East, Southeast Asia, Africa, and Europe, alongside our domestic supply base.

Industries served: Marine and offshore, pharmaceutical and chemical processing, heat exchanger and dyeing equipment manufacturing, food and beverage, and general welded fabrication.

Get a quote: Share your required size, schedule, length, and quantity, and the Nishra Overseas team — your Stainless Steel 316L Pipe manufacturer, supplier, and exporter in India — will respond with current pricing, lead time, and available certification for your order.
