SS 347H Welded Pipe & UNS S34709 Round Pipe Manufacturer, Supplier & Exporter in India

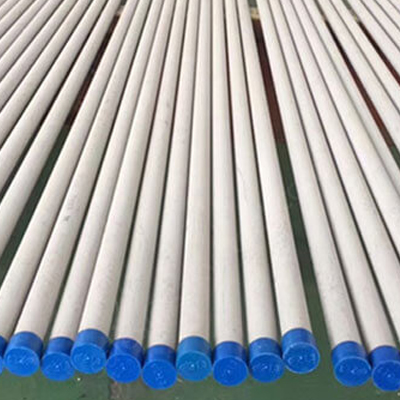

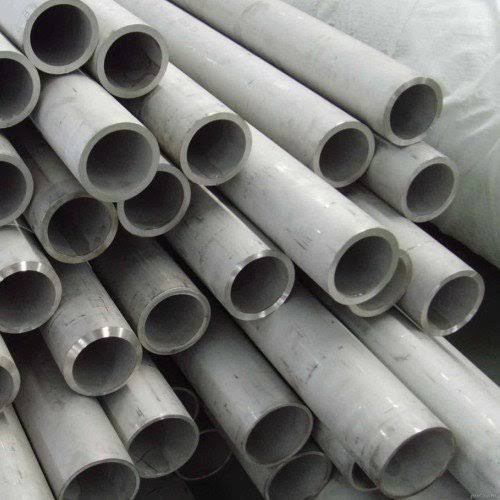

Nishra Overseas is a leading manufacturer, supplier and exporter of Stainless Steel 347H Pipe in India. 347H is a higher-carbon version of the 347 alloy, engineered for higher creep resistance and reliable performance at high temperatures and pressures. The higher carbon content of 0.04–0.10% enables dual certification in this grade. The Stainless Steel 347H Pipe is stabilized to provide good protection against corrosion, along with good oxidation resistance similar to other austenitic steels. The 347H Stainless Steel Tube we manufacture is used in heavy welded materials where annealing is not possible, and works reliably at temperatures up to 1600°F.
As a trusted 347H Pipe manufacturer and supplier, the Stainless Steel 1.4961 Tubing we produce is widely used in cabin heaters, aircraft exhausts, oil and gas refining systems, heat exchanger tubes, and boiler tube casings. We are among the top manufacturers, suppliers and exporters of Stainless Steel 347H Pipe/Tube in India, with our goal being to deliver the best quality products to our customers at reasonable rates, across India and to clients worldwide.
Stainless Steel 347H Pipe — Product Range
As a full-scale 347H Pipe manufacturer and exporter, our product line covers seamless, welded, ERW and custom-fabricated 347H pipe:
- Stainless Steel 347H Seamless Pipe — manufactured with excellent tensile strength above 515 MPa and yield strength above 205 MPa; made from single-sheet steel for high strength
- SS 347H Welded Pipe — free from the intergranular corrosion and sensitization issues found in 304/304L grades; possesses good density of 7.96 g/cm³
- 347H SS ERW Pipe — available in ½"–24" NB, welded spirally or longitudinally, known for good high- and low-frequency resistance
- ASTM A312 TP347H Pipe — extra toughness from higher carbon concentration, elongates up to 40% without loss of strength
- AISI 347H Schedule 40 Pipe — covers dimensions for both high and low temperature/pressure service, OD range 1/8" to 8"
- UNS S34709 Round Pipe — widely used for supplying gases and water, produced by piercing billet or by welding steel
- DIN 1.4961 Stainless Steel Square Pipe — produced by running coils through dies and interior-welding to shape
- SA312 TP347H Rectangular Pipe — manufactured with the best raw materials and latest technology for custom fabrication
- 347H 1.4961 Polished Pipe — cold-rolled and polished finish
All the above products can be manufactured, stocked and exported in custom shapes and sizes as per your project requirement. Contact us for more information on our ASTM A312 TP347H range.
Nishra Overseas — Manufacturer, Supplier & Exporter of ASME B36.10 and B36.19 Stainless Steel 347H Seamless Pipe, with wide inventory of SA312 TP347H ERW Pipe & 347H SS Rectangular Pipe in Mumbai, India
Table of Contents
- Specification Standards of Stainless Steel 347H Pipe
- SS 347H Welded Pipe Chemical Composition Standard
- 347H Stainless Steel Pipe Mechanical Behaviour
- Equivalent Grades of Stainless Steel 347H Seamless Pipe
- 347H Stainless Steel Tube Weight Chart
- Dimension Chart of UNS S34709 Round Pipe
- Pressure Rating of AISI 347H Schedule 40 Pipe
- Why Nishra Overseas — Manufacturer, Supplier & Exporter
Specification Standards of Stainless Steel 347H Pipe
|
Specification |
Details |
|
International Standard |
ASTM A312 / ASME SA312 Grade TP347H |
|
Seamless Pipe Size |
OD 4mm – 219mm; WT 0.5mm – 20mm |
|
Welded Pipe Size |
OD 5.0mm – 1219.2mm |
|
EFW Pipe Size |
OD 5.0mm – 1219.2mm |
|
Wall Thickness (Schedule) |
SCH 5, 10, 40, 80, 160, 80S, XS, XXS |
|
Techniques |
EFW / Seamless / ERW / Welded / LSAW / Fabricated / Seam-Welded / CDW / Redrawn |
|
Form |
Round, Square, Rectangular |
|
Length |
Single Random, Double Random, Required Length, Plain End, Threaded, Beveled End |
|
Condition |
Hot Finished, Annealed & Pickled, Bright Annealed, Polished, Cold Drawn |
SS 347H Welded Pipe Chemical Composition Standard
Nishra Overseas — supplier of Stainless Steel 1.4961 Tubing in specific length; manufacturer and exporter of AISI 347H Schedule 40 Pipe & ASTM A312 TP347H Round Pipe in various sizes
|
Element |
Minimum (%) |
Maximum (%) |
|
Carbon (C) |
0.04 |
0.10 |
|
Silicon (Si) |
– |
1.00 |
|
Manganese (Mn) |
– |
2.00 |
|
Phosphorus (P) |
– |
0.045 |
|
Sulphur (S) |
– |
0.030 |
|
Chromium (Cr) |
17 |
19 |
|
Nickel (Ni) |
9 |
13 |
|
Molybdenum (Mo) |
3 |
4 |
|
Nitrogen (N) |
– |
0.10 |
|
Iron (Fe) |
Balance |
347H Stainless Steel Pipe Mechanical Behaviour
|
Property |
SS 347H |
|
Tensile Strength |
515 MPa (min) |
|
Yield Strength |
205 MPa (min) |
|
Elongation |
40% (min) |
|
Hardness (Rockwell B) |
92 (max) |
|
Hardness (Brinell) |
201 (max) |
|
Density |
7.96 g/cm³ |
|
Melting Range |
~1450°C |
|
Max Service Temperature |
Up to 1600°F |
Equivalent Grades of Stainless Steel 347H Seamless Pipe
|
Material |
Werkstoff Nr. (German) |
UNS No. (USA) |
|
TP347H |
1.4961 |
S34709 |
347H Stainless Steel Tube Weight Chart
Nishra Overseas — stockholder and exporter of 347H Stainless Steel Tube and 347H 1.4961 Polished Pipe from 6.20mm to 152mm OD
|
NB (inch) |
OD (mm) |
Schedule |
WT (mm) |
Weight (kg/m) |
Weight (lbs/ft) |
|
1/2" |
21.3 |
40 STD |
2.77 |
1.27 |
0.85 |
|
3/4" |
26.7 |
40 STD |
2.87 |
1.68 |
1.13 |
|
1" |
33.4 |
40 STD |
3.38 |
2.50 |
1.68 |
|
1 1/2" |
48.3 |
40 STD |
3.68 |
4.05 |
2.72 |
|
2" |
60.3 |
40 STD |
3.91 |
5.44 |
3.65 |
|
3" |
88.9 |
40 STD |
5.49 |
11.28 |
7.58 |
|
4" |
114.3 |
STD |
6.02 |
16.07 |
10.79 |
|
6" |
168.3 |
40 STD |
7.11 |
18.97 |
12.74 |
|
8" |
219.1 |
40 |
8.18 |
28.55 |
19.18 |
|
10" |
273.0 |
40 STD |
9.27 |
40.48 |
27.19 |
|
12" |
323.8 |
– |
9.53 |
49.71 |
33.38 |
|
16" |
406.4 |
STD |
9.53 |
62.64 |
42.05 |
|
20" |
508.0 |
STD |
9.53 |
78.55 |
52.73 |
|
24" |
610.0 |
STD |
9.53 |
94.46 |
63.41 |
|
30" |
762.0 |
STD |
9.53 |
118.32 |
79.43 |
|
36" |
914.0 |
STD |
9.53 |
142.18 |
95.45 |
|
42" |
1067.0 |
STD |
9.53 |
206.91 |
138.91 |
|
48" |
1219.0 |
STD |
9.53 |
284.11 |
190.74 |
Full chart with intermediate sizes and schedules available on request
Dimension Chart of UNS S34709 Round Pipe
Nishra Overseas — exporter of fabricated & large-diameter 347H Stainless Steel Pipe & DIN 1.4961 Square Pipe in India
|
Nominal Size (in) |
OD (in) |
OD (mm) |
WT (in) |
WT (mm) |
Weight (kg/m) |
Weight (lbs/ft) |
|
1/8 |
0.41 |
10.3 |
0.068 |
1.73 |
0.37 |
0.24 |
|
1/4 |
0.54 |
13.7 |
0.088 |
2.24 |
0.63 |
0.42 |
|
3/8 |
0.68 |
17.1 |
0.091 |
2.31 |
0.84 |
0.57 |
|
1/2 |
0.84 |
21.3 |
0.109 |
2.77 |
1.27 |
0.85 |
|
3/4 |
1.05 |
26.7 |
0.113 |
2.87 |
1.69 |
1.13 |
|
1 |
1.32 |
33.4 |
0.133 |
3.38 |
2.5 |
1.68 |
|
1 1/2 |
1.90 |
48.3 |
0.145 |
3.68 |
4.05 |
2.72 |
|
2 |
2.375 |
60.3 |
0.154 |
3.91 |
5.44 |
3.65 |
|
3 |
3.500 |
88.9 |
0.216 |
5.49 |
11.29 |
7.58 |
|
4 |
4.500 |
114.3 |
0.237 |
6.02 |
16.07 |
10.79 |
|
6 |
6.625 |
168.3 |
0.28 |
7.11 |
28.26 |
18.97 |
|
8 |
8.625 |
219.1 |
0.322 |
8.18 |
42.55 |
28.55 |
|
10 |
10.75 |
273.0 |
0.365 |
9.27 |
60.31 |
40.48 |
|
12 |
12.75 |
323.8 |
0.406 |
10.31 |
79.73 |
53.52 |
|
16 |
16.00 |
406.4 |
0.500 |
12.70 |
123.30 |
82.77 |
|
20 |
20.00 |
508.0 |
0.594 |
15.09 |
183.42 |
123.11 |
|
24 |
24.00 |
610.0 |
0.688 |
17.48 |
255.41 |
171.29 |
|
32 |
32.00 |
813.0 |
0.688 |
17.48 |
342.91 |
230.08 |
Pressure Rating of AISI 347H Schedule 40 Pipe
Allowable stress (psi) by temperature:
|
Pipe Size |
Sch. |
OD (in) |
WT (in) |
100°F |
300°F |
500°F |
600°F |
700°F |
750°F |
|
1" |
40 |
1.315 |
0.133 |
2205 |
2205 |
1902 |
1783 |
1703 |
1664 |
|
1" |
80 |
1.315 |
0.179 |
3061 |
3061 |
2640 |
2475 |
2365 |
2310 |
|
1 1/2" |
40 |
1.900 |
0.145 |
1629 |
1629 |
1404 |
1317 |
1258 |
1229 |
|
2" |
40 |
2.375 |
0.154 |
1371 |
1371 |
1182 |
1108 |
1059 |
1034 |
|
2" |
80 |
2.375 |
0.218 |
1985 |
1985 |
1712 |
1605 |
1534 |
1498 |
|
3" |
40 |
3.500 |
0.216 |
1301 |
1301 |
1122 |
1052 |
1005 |
982 |
|
4" |
40 |
4.500 |
0.237 |
1102 |
1102 |
950 |
891 |
851 |
831 |
|
5" |
40 |
5.563 |
0.258 |
965 |
965 |
832 |
780 |
746 |
728 |
|
6" |
40 |
6.625 |
0.280 |
877 |
877 |
756 |
709 |
677 |
661 |
|
8" |
40 |
8.625 |
0.322 |
771 |
771 |
665 |
623 |
596 |
582 |
|
10" |
40 |
10.750 |
0.365 |
699 |
699 |
603 |
565 |
540 |
528 |
Full pressure rating chart (all schedules, 1"–10") available on request
Why Nishra Overseas — 347H Pipe Manufacturer, Supplier & Exporter in India
Nishra Overseas LLP is a Mumbai-based manufacturer, supplier, stockist and exporter of Stainless Steel 347H Pipe and Tube, backed by ISO 9001:2015 certification.
- As a Manufacturer — in-house cold drawing, annealing, pickling and polishing to ASTM A312/ASME SA312 TP347H specification, with custom fabrication for rectangular and square sections
- As a Supplier — ready stock of seamless, welded and ERW 347H pipe held in Mumbai from 6.20mm to 152mm OD, for fast delivery without mill lead times
- As an Exporter — shipments of fabricated and large-diameter 347H pipe to clients worldwide, with full mill test certificates (EN 10204 3.1/3.2), third-party inspection (SGS/BV/TUV), and export-grade packing
Applications of SS 347H Pipe
- Cabin heaters and aircraft exhaust systems
- Oil and gas refining systems
- Heat exchanger tubes
- Boiler tube casings
- High-temperature, high-pressure process piping
- Heavy welded structures where post-weld annealing is not possible
