AISI 904L Pipe & UNS N08904 Seamless Pipe Manufacturer, Supplier & Exporter in India

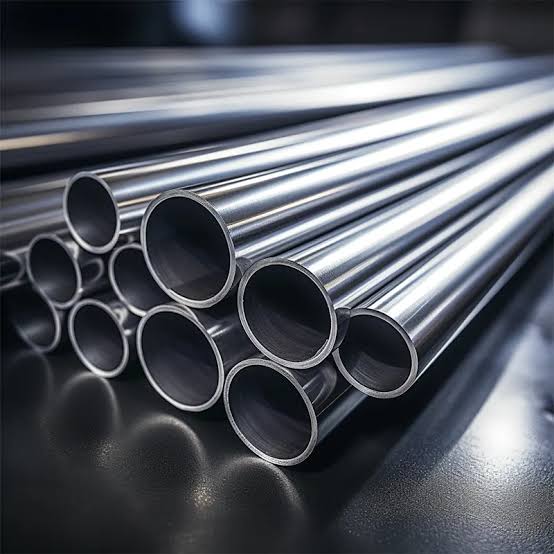

Nishra Overseas is a leading manufacturer, supplier and exporter of Stainless Steel 904L Pipe in India. 904L is a non-stabilized austenitic steel with low carbon concentration and high concentrations of nickel and molybdenum, along with traces of copper. This composition gives it high resistance to reducing acids and general corrosion, along with strong resistance to cracking and carburization. The Stainless Steel 904L Pipe is available in nominal sizes from 1/8" to 24" NB and outer diameters up to 914.4mm, in lengths up to 30 meters, across multiple schedules and shapes.
As a trusted 904L Pipe manufacturer and supplier, we hold density-graded material to 7.95 g/cm³ manufactured to international and national standards, with a melting point of approximately 1350°C. 904L Tubing is widely specified where the corrosion resistance of 316L and 317L is no longer sufficient — making it the standard choice in aerospace, petrochemical, and pharmaceutical industries. We are among the leading 904L Stainless Steel Pipe manufacturers, suppliers and exporters in India, with our goal being to deliver the best quality products at the most reasonable rates, from Mumbai to clients across India and worldwide.
Stainless Steel 904L Pipe — Product Range
As a full-scale 904L Pipe manufacturer and exporter, our product range covers seamless, welded and ERW forms:
- SS 904L Welded Pipe — easier to produce due to low carbon content; stronger and more corrosion-resistant than standard welded pipe grades; produced to ASTM B673 / UNS N08904, size range 5mm–1219.2mm, thickness 0.5mm–20mm
- 904L Seamless Pipe — made from a single sheet of steel for higher strength, at a premium over welded pipe
- DIN 1.4539 Seamless Pipe — available OD 4mm–219mm, thickness 0.5mm–20mm, in single random, double random and cut lengths
- 904L SS ERW Pipe — tensile strength 490 MPa min, yield strength 220 MPa min, elongation up to 36%
- ASTM A312 TP904L Round Pipe — the most widely used form in this grade; strong, durable, low maintenance
- SA312 TP904L Square Pipe — preferred for structural support; can be cold-rolled for a smooth, corrosion-resistant finish
- AISI 904L Rectangular Pipe — interior-welded to shape, available with special outer diameters
- 904L 1.4539 Schedule 40 Pipe — for low and high-pressure applications, service up to 140°F
All forms can be manufactured, stocked and exported to custom shapes and sizes as per your requirement. Contact us for pricing on our Stainless Steel 904L Pipe/Tube range.
Nishra Overseas — specialist manufacturer, supplier, distributor and stockist of Stainless Steel Grade 1.4539 Welded Tube and 904L Seamless Pipe in India
Table of Contents
- SS 904L Pipe Specification
- Types of SS 904L Pipe & Tube
- SS 904L Pipe Composition and Properties
- SS 904L Pipe Dimensions & Weight Chart
- 904L Seamless Tube Inventory Stock
- Why Nishra Overseas — Manufacturer, Supplier & Exporter
SS 904L Pipe Specification
|
Specification |
Details |
|
Standard Designation |
ASTM B677 / ASME SB677 |
|
Outside Diameter |
6.00mm OD up to 914.4mm OD (sizes up to 24" NB ex-stock) |
|
Thickness Range |
0.3mm – 50mm |
|
Schedule |
SCH 5, 10, 10S, 40, 80, 80S, 160, XS, XXS |
|
Length |
Single Random, Double Random, Required Length |
|
End Finish |
Plain End, Beveled End, Threaded |
|
Type |
Seamless / ERW / Welded / Fabricated / CDW / Honed |
|
Surface Finish |
2B, No.1, No.4, No.8 Mirror, or as per customer requirement |
|
Additional Services |
Cutting, threading, and grooving to specification |
Types of SS 904L Pipe & Tube
Nishra Overseas — stockist and manufacturer of STD, XS and XXS UNS N08904 Pipe & ASTM A312 TP904L Round Pipe, weight and specification as per ASME B36.19/B36.19M
Available Product Forms
- SS 904L Round Pipe / Tube
- SS 904L Square Pipe / Tube
- SS 904L Rectangular Pipe / Tube
- SS 904L Coiled Tubing
- SS 904L "U" Shape Tube
- SS 904L Hydraulic Tube
- SS 904L Large Diameter Custom Size Pipe
- SS 904L Heat Exchanger & Finned Tube
- SS 904L Capillary & Precision Tube
Manufacturing Specifications Covered
ASTM A312, ASTM A213, ASTM A249, ASTM A554, ASTM B673/B674, ASTM B366 — plus individual customer specifications. We produce precision thick-wall and thin-wall UNS N08904 tube and pipe in seamless, welded, and redrawn forms.
Delivery Condition: Annealed & Pickled, Polished, Bright Annealed, Cold Drawn End Protection: Plastic Caps Inspection & Test Reports: Mill Test Certificates (EN 10204 3.1), Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third-Party Inspection Reports, Destructive & Non-Destructive Test Reports
SS 904L Pipe Composition and Properties
Nishra Overseas — manufacturer & supplier of European/American standard Schedule 40 SS 904L Pipe and AISI/SUS 904L Square Pipe, ex-stock in Mumbai
Chemical Composition
|
Element |
Composition (%) |
|
Carbon (C) |
0.020 max |
|
Manganese (Mn) |
2.00 max |
|
Silicon (Si) |
1.00 max |
|
Phosphorus (P) |
0.045 max |
|
Sulphur (S) |
0.035 max |
|
Chromium (Cr) |
19.0 – 23.0 |
|
Molybdenum (Mo) |
4.0 – 5.0 |
|
Nickel (Ni) |
23.0 – 28.0 |
|
Copper (Cu) |
1.0 – 2.0 |
|
Iron (Fe) |
Balance |
Mechanical & Physical Properties
|
Property |
Value |
|
Density |
8.0 g/cm³ |
|
Melting Range |
1300 – 1390°C |
|
Elongation |
35% (min) |
|
Tensile Strength |
490 MPa (min) |
|
Yield Strength |
220 MPa (min) |
|
Hardness (Brinell) |
150 (max) |
SS 904L Pipe Dimensions & Weight Chart
Nishra Overseas — supplier of 1.6mm to 125mm OD seamless and welded ASME SB677 UNS N08904 material, larger sizes per ASTM B677/A312/B673; custom-length cutting at no extra cost
|
OD (inch) |
OD (mm) |
0.8mm WT (kg/6m) |
1.2mm WT (kg/6m) |
2.0mm WT (kg/6m) |
3.0mm WT (kg/6m) |
|
3/8" |
9.5 |
1.06 |
1.51 |
1.82 |
– |
|
1/2" |
12.7 |
1.45 |
2.10 |
2.55 |
– |
|
3/4" |
19.1 |
2.22 |
3.26 |
4.01 |
– |
|
1" |
25.4 |
2.99 |
4.41 |
5.45 |
– |
|
1 1/4" |
31.8 |
3.77 |
5.58 |
6.91 |
– |
|
1 1/2" |
38.1 |
4.53 |
6.73 |
8.34 |
– |
|
2" |
50.8 |
6.08 |
9.04 |
11.24 |
14.83 |
|
3" |
76.2 |
9.17 |
13.68 |
17.03 |
22.55 |
|
4" |
101.6 |
– |
18.31 |
22.82 |
30.27 |
Full dimension chart with all wall thicknesses (0.6mm–6mm) and sizes up to 6" available on request
904L Seamless Tube Inventory Stock
|
NB Size |
Sch 5 |
Sch 10 |
Sch 40 |
Sch 80 |
Sch 160 |
|
1/8" |
✔ |
✔ |
✔ |
✔ |
– |
|
1/4" |
✔ |
✔ |
✔ |
✔ |
– |
|
3/8" |
✔ |
✔ |
✔ |
✔ |
– |
|
1/2" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
3/4" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
1" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
1 1/4" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
1 1/2" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
2" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
2 1/2" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
3" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
4" |
✔ |
✔ |
✔ |
✔ |
✔ |
|
5" |
✔ |
✔ |
✔ |
✔ |
– |
|
6" |
✔ |
✔ |
✔ |
✔ |
– |
Applications of SS 904L Pipe
- Aerospace and defense components
- Petrochemical and offshore oil & gas processing
- Pharmaceutical and chemical processing plants
- Flue gas desulphurization (FGD) systems
- Marine and seawater handling equipment
- Applications where 316L/317L corrosion resistance is insufficient
Why Nishra Overseas — 904L Pipe Manufacturer, Supplier & Exporter in India
Nishra Overseas LLP is a Mumbai-based manufacturer, supplier, stockist and exporter of Stainless Steel 904L Pipe and Tube, backed by ISO 9001:2015 certification.
- As a Manufacturer — in-house cold drawing, annealing, pickling, and custom cutting/threading/grooving to ASTM B677/A312 specification
- As a Supplier — ready stock across NB 1/8" to 6" in Schedules 5 to 160, held in Mumbai for immediate dispatch without mill lead times
- As an Exporter — shipments of 904L pipe and tube to clients worldwide, with full documentation including EN 10204 3.1/3.2 mill test certificates, PMI test reports, and third-party inspection (SGS/BV/TUV)
