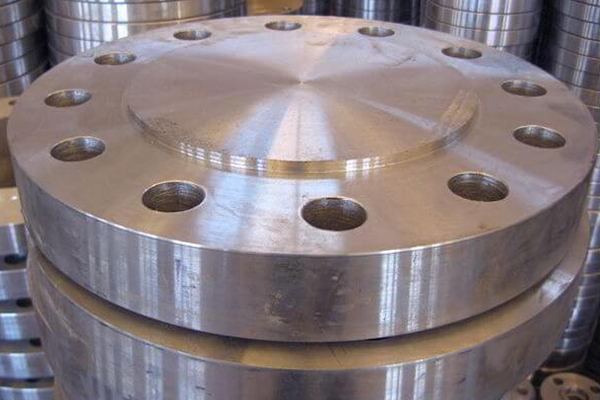

BLRF Flanges Manufacturer in India

BLRF Flanges, BLRF Flanges Exporter, BLRF Flanges Manufacturer in India, SS BLRF Flanges Price, Best Quality BLRF Flanges, Carbon Steel BLRF Flanges Supplier, Stainless Steel BLRF Flanges Stockists in Mumbai, India

Nishra Overseas LLP is well-known as a manufacturer, exporter, and supplier of BLRF Flanges in a variety of grades, materials, and finishes in both metric and inch sizes. A full-service fastener distributor focusing in industrial items for enterprises involved in equipment manufacture, mining, oil refineries, chemical production, steel and aluminum manufacturing, utilities and transportation, and industrial construction.

BLRF Flanges – IBR and Non-IBR, ANSI B16.5 BLRF Flanges, SS SOF Flanges Suppliers in India, Carbon Steel BLRF – IBR and Non-IBR Flanges Exporter Supplier, EN1092, ASME B16.5 BLRF Flanges Manufacturers.

Nishra Overseas offers a wide range of BLRF Flanges in Carbon Steel, Stainless Steel, High Nickel Alloy -F467 NiCu 400 (Monel), and commercial 18-8/304, 316L Stainless Steel. We supply BLRF Flanges at the best possible pricing. ASME B 16.5, ASME B 16.47, ASTM A182, 105, 350, SB564, 160, 472 Blind Flanges with Nickel Alloy BLRF Flange Manufacturer

Types of BLRF Flanges include SORF, SWRF, WNRF, BLRF, LAP Joint, Reducing, Spectacle, Threaded, and As Per Your Drawing in International Standards such as ASTM, BS, IS, ASA, DIN Table, etc., with Manufacturer Test Certificate and IBR Test Certificate.

These flanges are available to all consumers at a very competitive price when compared to other sectors in the market. Once these flanges are completed, they are subjected to a variety of destructive and non-destructive testing to ensure their strength, durability, high tensile strength, and other properties. We also undertake third-party tests on our goods at the request of customers to demonstrate that ASME B16.47 BLRF Flanges manufactured by us can endure any conditions. At Nishra Overseas we always meet our customers' needs. We follow all of the conventional packaging methods.

Customized packaging can also be chosen based on the customer's preferences for safer product delivery. We never compromise on product quality; these BLRF flanges are packed with high-grade packaging materials to ensure damage-free delivery throughout travel. Every flange is meticulously wrapped, and after packed, the quality team does a quality check on each Blind Raised Face Flanges packing; following certification, these flanges are shipped. We consistently use the best shipping services to ship these Flanges to diverse customers in different areas of the world on time, as promised.

We are a Stainless Steel BLRF Flange manufacturer in India, and we offer these Inconel BLRF Flange, Hastelloy BLRF Flange, Monel BLRF Flange, Alloy 20 BLRF Flange, Aluminium BLRF Flange, Nickel BLRF Flange, Duplex BLRF Flange, Super Duplex BLRF Flange, Incoloy BLRF Flange, Copper BLRF Flange, Copper Nickel BLRF Flange, Brass BLRF Flange, 254 Smo BLRF Flange, and Titanium BLRF Flange in all standards that are common in the world.

BLRF Flanges Specification

Dimensions of BLRF Flanges

Dimensional Tolerances of BLRF Flanges ASME B16.5

The types of BLRF Flanges

• Flat face flanges are often employed in applications that need a smooth surface contact with the flange.
• Raised Face - The little raised portion around the bore represents the gasket used in this technique.
• Ring Joint Face - This face type is utilized in high-pressure and high-temperature procedures, with a groove for a metal gasket to maintain the seal.
• Tongue and Groove -These flanges have identical grooves and elevated portions. This simplifies installation since the design allows the flanges to self-align and offers a reservoir for gasket adhesive.
• Male and Female - These flanges, like tongue and groove flanges, secure the gasket with a matched pair of grooves and elevated parts. However, unlike tongue and groove flanges, these maintain the gasket on the female face, allowing for more precise positioning and a wider range of gasket materials.

BLRF Flanges are used in

• Mainly used while creating a piping system
• Testing pipe pressure
• Creating an access point in the piping system
• To temporarily seal a piping system or pressure vessel openings
• Creating a long term seal

Benefits of Using BLRF Flanges:

• Versatility: Blind flanges come in a variety of diameters, pressure ratings, and materials to meet a wide range of piping system requirements.
• Leak-Proof Sealing: The solid design provides a complete and trustworthy seal, preventing leaks and preserving system integrity.
• Ease of Use: Blind flanges are easy to install and remove, making them suitable for both temporary and permanent closures.
• Cost-effective: When compared to other closure methods, blind flanges provide a less expensive solution for closing pipe ends.

Why Choose BLRF Flanges:

• Size and Pressure Rating: Choosing the correct size and pressure rating for your blind flange is critical. The flange size should match the diameter of the pipe being sealed, and the pressure rating should be sufficient to accommodate the system's maximum pressure.
• Material: Blind flanges are commonly made of steel, stainless steel, or alloys, depending on the use. Specific material selection is determined by considerations such as pressure requirements, fluid compatibility, and corrosion resistance.
• Flange Face Type: Blind flanges are available in a variety of face types, including raised face (RF) and flat face. The mating flange with which it will join within the pipe system determines the proper face type.

BLRF Flanges Applications

BLRF Flanges Marking

Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.

• The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc
  LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER
• The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER
• The Marking Style For JIS, KS norms etc, special with KS Mark
  LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK
• The Marking Style for BS 4504 norms etc
  LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER
• The Marking Style for GOST 12820, GOST 12821 norms etc
  LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER
• The Marking Style for SABS 1123, SANS 1123 norms etc
  LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER

BLRF Flanges for Shipping, Handling, and Packaging

Carbon Steel BLRF Flanges and Stainless Steel Socket Weld Flanges are delivered with or without surface protection, as determined by the manufacturer.

The company delivers BLRF Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
