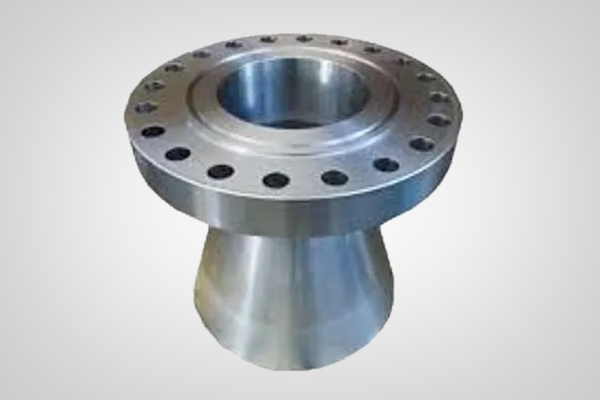

Nishra Overseas LLP is a leading manufacturer, stockist, supplier, and exporter of Expander Flanges in India. Expander flanges are used to enlarge the bore of pipelines from one location to another in order to connect pipes to mechanical devices such as pumps, compressors, and cocks with varying cove sizes. The Expander Flange depicted is a weld neck flange with more drag on the non-flange end.
Expander Flanges are welding neck pipe flanges with larger non-flanged ends on average than flanged ends. These flanges can be used to modify the pipe run of a given format. Expander Flanges are commonly used to increase line size to the second or first big sizes. These flanges are an alternative to using weld neck flanges with a certain reducer combination. Expander flanges are used to connect pipes to various components such as pumps, valves, and compressors.
ANSI B16.5 Class 150 Expander Flange are used to increase the run pipe bore by one or two sizes, but not any further. ASME B16.5 Expander flanges are less expensive than combining a butt weld pipe reducer with a regular flange (which is the conventional option for pipe drag increases above two diameters). The pressure conditions and range of expanding flanges are consistent with the ANSI/ASME B16.5 specification, and they are available with raised or flat faces (RF, FF).
We are authorized exporters and providers of ASME B16.5 Expander Weld Neck Flanges in the United States, United Kingdom, Qatar, Mexico, Nigeria, Saudi Arabia, Kuwait, Iran, Kazakhstan, Bahrain, Vietnam, Indonesia, Norway, Ghana, Colombia, Azerbaijan, and Libya.
We are a Stainless Steel Expander Flange manufacturer in India, and we offer these Inconel Expander Flange, Hastelloy Expander Flange, Monel Expander Flange, Alloy 20 Expander Flange, Aluminium Expander Flange, Nickel Expander Flange, Duplex Expander Flange, Super Duplex Expander Flange, Incoloy Expander Flange, Copper Expander Flange, Copper Nickel Expander Flange, Brass Expander Flange, 254 Smo Expander Flange, and Titanium Expander Flange in all standards that are common in the world.
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Slip On Flanges/ SORF Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Slip On Flanges/ SORF Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Slip On Flanges/ SORF Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Slip On Flanges/ SORF Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Socket Weld Flange |
| Value Added Services | CNC Machining, Customised Flanges |
| Pipe Size (NPS) | Outside Diameter of Flange A | Diameter of Raised Face B | Thickness of Flange C | Diameter of Bore D | Diameter of Bore D2 | Diameter of Hub at Weld H | Diameter of Hub at Base J | Length of Hub K | Compound Taper CT | Slope at Bevel SB | Number of Bolt Holes | Diameter of Bolt Holes | Bolt Circle Diameter P | Approx. Weight (lb) | Design Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 x 3 | 6 | 3 5/8 | 3/4 | 2.067 | 3.068 | 3.500 | 3 1/16 | 2 1/2 | – | 16° | 4 | 3/4 | 4 3/4 | 6 | A |
| 2 x 4 | 6 | 3 5/8 | 3/4 | 2.067 | 4.026 | 4.500 | 3 1/16 | 3 5/8 | 1/2 | 29° * | 4 | 3/4 | 4 3/4 | 6 | C |
| 3 x 4 | 7 1/2 | 5 | 15/16 | 3.068 | 4.026 | 4.500 | 4 1/4 | 2 3/4 | – | 15° | 4 | 3/4 | 6 | 11 | A |
| 4 x 6 | 9 | 6 3/16 | 15/16 | 4.026 | 6.065 | 6.625 | 5 5/16 | 3 1/4 | 1/2 | 30° * | 8 | 3/4 | 7 1/2 | 15 | C |
| 6 x 8 | 11 | 8 1/2 | 1 | 6.065 | 7.981 | 8.625 | 7 9/16 | 4 | 1/2 | 28° * | 8 | 7/8 | 9 1/2 | 24 | C |
| 8 x 10 | 13 1/2 | 10 5/8 | 1 1/8 | 7.981 | 10.020 | 10.750 | 9 11/16 | 4 | 1/2 | 29° * | 8 | 7/8 | 11 3/4 | 39 | C |
| 8 x 12 | 13 1/2 | 10 5/8 | 1 1/8 | 7.981 | 12.000 | 12.750 | 9 11/16 | 6 | 1/2 | 29° * | 8 | 7/8 | 11 3/4 | 39 | C |
| 10 x 12 | 16 | 12 3/4 | 1 3/16 | 10.020 | 12.000 | 12.750 | 12 | 3 15/16 | 1/2 | 39° * | 12 | 1 | 14 1/4 | 52 | C |
| 10 x 14 | 16 | 12 3/4 | 1 3/16 | 10.020 | 13.250 | 14.000 | 12 | 5 7/16 | 5/8 | 30° * | 12 | 1 | 14 1/4 | 52 | C |
| 12 x 14 | 19 | 15 | 1 1/4 | 12.000 | 13.250 | 14.000 | 14 3/8 | 4 1/2 | – | 11° | 12 | 1 | 17 | 80 | D |
| 12 x 16 | 19 | 15 | 1 1/4 | 12.000 | 15.250 | 16.000 | 14 3/8 | 4 13/16 | 5/8 | 30° * | 12 | 1 | 17 | 80 | C |
| 14 x 16 | 21 | 16 1/4 | 1 3/8 | 13.250 | 15.250 | 16.000 | 15 3/4 | 5 | – | 15° | 12 | 1 1/8 | 18 3/4 | 120 | A |
| 14 x 18 | 21 | 16 1/4 | 1 3/8 | 13.250 | 17.250 | 18.000 | 15 3/4 | 5 11/16 | 5/8 | 30° * | 12 | 1 1/8 | 18 3/4 | 120 | C |
| 18 x 20 | 25 | 21 | 1 9/16 | 17.250 | 19.250 | 20.000 | 19 7/8 | 5 1/2 | – | 14° | 16 | 1 1/4 | 22 3/4 | 140 | A |
| 18 x 24 | 25 | 21 | 1 9/16 | 17.250 | 23.250 | 24.000 | 19 7/8 | 8 13/16 | 5/8 | 28° * | 16 | 1 1/4 | 22 3/4 | 140 | C |
| 20 x 24 | 27 1/2 | 23 | 1 11/16 | 19.250 | 23.250 | 24.000 | 22 | 6 7/16 | 5/8 | 30° * | 20 | 1 1/4 | 25 | 170 | C |
| 24 x 30 | 32 | 27 1/4 | 1 7/8 | 23.250 | 29.250 | 30.000 | 26 1/8 | 8 11/16 | 3/4 | 30° * | 20 | 1 3/8 | 29 1/2 | 260 | C |
| Pipe Size (NPS) | Outside Diameter of Flange A | Diameter of Raised Face B | Thickness of Flange C | Diameter of Bore D | Diameter of Bore D2 | Diameter of Hub at Weld H | Diameter of Hub at Base J | Length of Hub K | Compound Taper CT | Slope at Bevel SB | Number of Bolt Holes | Diameter of Bolt Holes | Bolt Circle Diameter P | Approx. Weight (lb) | Design Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 x 3 | 6 1/2 | 3 5/8 | 7/8 | 2.067 | 3.068 | 2.375 | 3 5/16 | 2 3/4 | – | 15° | 8 | 3/4 | 5 | 9 | A |
| 2 x 4 | 6 1/2 | 3 5/8 | 7/8 | 2.067 | 4.026 | 2.375 | 3 5/16 | 2 3/4 | 1/2 | 29° * | 8 | 3/4 | 5 | 9 | C |
| 3 x 4 | 8 1/4 | 5 | 1 1/8 | 3.068 | 4.026 | 3.500 | 4 5/8 | 3 1/8 | – | 13° | 8 | 7/8 | 6 5/8 | 15 | D |
| 4 x 6 | 10 | 6 3/16 | 1 1/4 | 4.026 | 6.065 | 4.500 | 5 3/4 | 3 3/8 | 1/2 | 30° * | 8 | 7/8 | 7 7/8 | 25 | C |
| 6 x 8 | 12 1/2 | 8 1/2 | 1 7/16 | 6.065 | 7.981 | 6.625 | 8 1/8 | 3 7/8 | 1/2 | 22° * | 12 | 7/8 | 10 5/8 | 42 | B |
| 8 x 10 | 15 | 10 5/8 | 1 5/8 | 7.981 | 10.020 | 8.625 | 10 1/4 | 4 3/8 | – | 20° | 12 | 1 | 13 | 67 | A |
| 10 x 12 | 17 1/2 | 12 3/4 | 1 7/8 | 10.020 | 12.000 | 10.750 | 12 5/8 | 4 5/8 | – | 20° | 16 | 1 1/8 | 15 1/4 | 91 | A |
| 12 x 14 | 20 1/2 | 15 | 2 | 12.000 | 13.250 | 12.750 | 14 3/4 | 5 1/8 | – | 11° | 16 | 1 1/4 | 17 3/4 | 138 | D |
| 14 x 16 | 23 | 16 1/4 | 2 1/8 | 13.250 | 15.250 | 14.000 | 16 3/4 | 5 5/8 | – | 16° | 20 | 1 1/4 | 20 1/4 | 186 | D |
| 16 x 18 | 25 1/2 | 18 1/2 | 2 1/4 | 15.250 | 17.250 | 16.000 | 19 | 5 3/4 | – | 16° | 20 | 1 3/8 | 22 1/2 | 246 | D |
| 18 x 20 | 28 | 21 | 2 3/8 | 17.250 | 19.250 | 18.000 | 21 | 6 1/4 | – | 14° | 24 | 1 3/8 | 24 3/4 | 305 | D |
| 20 x 24 | 30 1/2 | 23 | 2 1/2 | 19.250 | 23.250 | 20.000 | 23 1/8 | 6 3/8 | 5/8 | 29° * | 24 | 1 3/8 | 27 | 378 | B |
| 24 x 30 | 36 | 27 1/4 | 2 3/4 | 23.250 | 29.250 | 24.000 | 27 5/8 | 6 5/8 | 3/4 | 30° * | 24 | 1 5/8 | 32 | 545 | B |
| Pipe Size (NPS) | Outside Diameter of Flange A | Diameter of Raised Face B | Thickness of Flange C | Diameter of Bore D | Diameter of Bore D2 | Diameter of Hub at Weld H | Diameter of Hub at Base J | Length of Hub K | Compound Taper CT | Slope at Bevel SB | Number of Bolt Holes | Diameter of Bolt Holes | Bolt Circle Diameter P | Approx. Weight (lb) | Design Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 x 3 | 6 1/2 | 3 5/8 | 1 | * | * | 2.375 | 3 5/16 | 2 7/8 | – | 14° | 8 | 3/4 | 5 | 12 | A |
| 2 x 4 | 6 1/2 | 3 5/8 | 1 | * | * | 2.375 | 3 5/16 | 2 7/8 | 1/2 | 29° ** | 8 | 3/4 | 5 | 12 | C |
| 3 x 4 | 8 1/4 | 5 | 1 1/4 | * | * | 3.500 | 4 5/8 | 3 1/4 | – | 13° | 8 | 7/8 | 6 5/8 | 23 | D |
| 4 x 6 | 10 3/4 | 6 3/16 | 1 1/2 | * | * | 4.500 | 6 | 4 | – | 21° | 8 | 1 | 8 1/2 | 42 | A |
| 6 x 8 | 14 | 8 1/2 | 1 7/8 | * | * | 6.625 | 8 3/4 | 4 5/8 | – | 21° | 12 | 1 1/8 | 11 1/2 | 81 | D |
| 8 x 10 | 16 1/2 | 10 5/8 | 2 3/16 | * | * | 8.625 | 10 3/4 | 5 1/4 | – | 19° | 12 | 1 1/4 | 13 3/4 | 117 | D |
| 10 x 12 | 20 | 12 3/4 | 2 1/2 | * | * | 10.750 | 13 1/2 | 6 | – | 16° | 16 | 1 3/8 | 17 | 189 | D |
| 12 x 14 | 22 | 15 | 2 5/8 | * | * | 12.750 | 15 3/4 | 6 1/8 | – | 10° | 20 | 1 3/8 | 19 1/4 | 226 | D |
| 14 x 16 | 23 3/4 | 16 1/4 | 2 3/4 | * | * | 14.000 | 17 | 6 1/2 | – | 15° | 20 | 1 1/2 | 20 3/4 | 347 | D |
| 16 x 18 | 27 | 18 1/2 | 3 | * | * | 16.000 | 19 1/2 | 7 | – | 14° | 20 | 1 5/8 | 23 3/4 | 481 | D |
| 18 x 20 | 29 1/4 | 21 | 3 1/4 | * | * | 18.000 | 21 1/2 | 7 1/4 | – | 14° | 20 | 1 3/4 | 25 3/4 | 555 | D |
| 20 x 24 | 32 | 23 | 3 1/2 | * | * | 20.00 | 24 | 7 1/2 | 5/8 | 28° ** | 24 | 1 3/4 | 28 1/2 | 690 | E |
| 24 x 30 | 37 | 27 1/4 | 4 | * | * | 24.00 | 28 1/4 | 8 | 3/4 | 28° ** | 24 | 2 | 33 | 977 | C |
Aside from its great functional benefits, the expander flange also helps to reduce cumbersome inventory requirements and total installation, making it an essential component of many industries, including oil and gas, chemical processing, and power generation. As a result, this forward-thinking innovation continues to attract the attention of engineers and plumbers alike, boosting current plumbing capabilities to new and efficient heights.
An expander flange is a device that fits into an existing pipe to increase its diameter without replacing the full length of the pipe. It operates by expanding outward when pressure is applied to the inside of the pipe. This results in a more secure seal between two pipes and allows them to be joined with more strength than if they were simply connected at their existing diameters.
| Oil and Gas Processing | Dairy and Food Processing |
| Desalination | Pesticides |
| Pulp and Paper | Sugar Factory |
| Energy industries | Power Plants |
| Ship Building | Fertilizers |
| Machine Building | Nuclear |
| Pharmaceuticals | Chemicals |
| Textile Machinery | Synthetic Fibers |
| Construction | Modern Architecture |
| Refinery & Petrochemicals | Water treatment facilities |
Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.
Carbon Steel Expander Flanges and Stainless Steel Socket Weld Flanges are delivered with or without surface protection, as determined by the manufacturer.
The company delivers Expander Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
