Weldo Flange Manufacturer in India

Weldo Flanges, Weldo Flanges Exporter, Weldo Flanges Manufacturer in India, SS Weldo Flanges Price, Best Quality Weldo Flanges, Carbon Steel Weldo Flanges Supplier, Stainless Steel Weldo Flanges Stockists in Mumbai, India

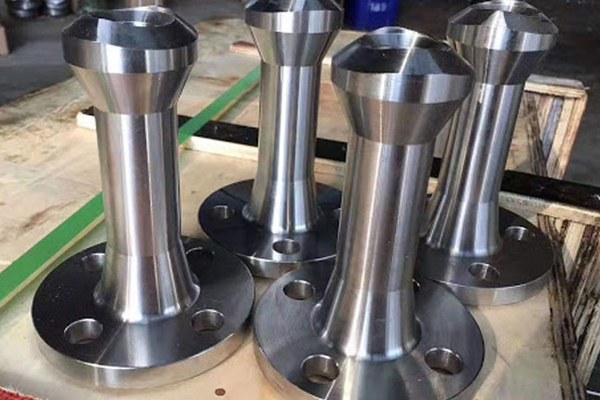

A weldo flange, also known as a weld neck or welding neck flange, is a critical component in piping systems and pressure tanks. It's essential for connecting pipes and creating a leak-free, high-strength junction. The phrase "weldo" is a colloquialism used in some areas, although the more typical term is "weld neck" or "welding neck" flange. The unique design of a weldo flange distinguishes it from other flange types. It has a long neck that protrudes from the flange hub and is tapered. This neck is made to be welded straight onto the pipe. The neck's beveled end offers the ideal welding angle, guaranteeing a strong and safe bond. This design is a popular option for applications where weld integrity and quality are crucial since it makes it simple to do radiographic inspection of the weld.

Weldo Flanges – IBR and Non-IBR, ANSI B16.5 Weldo Flanges, SS SOF Flanges Suppliers in India, Carbon Steel Weldo – IBR and Non-IBR Flanges Exporter Supplier, EN1092, ASME B16.5 Weldo Flanges Manufacturers.

The ANSI B16.5 Weldoflange dimensions are intended for both pipe systems and flanged fittings. The Standard MSS-SP-44 Weldoflange specification includes dimensions, tolerances, marking, testing, pressure and temperature ratings, materials, and procedures for designing apertures for flanges and flanged fittings in pipeline systems. The following points are included.

ASME B16.47 Weldoflange has been limited to flanges and flanged fittings composed of cast or forged materials. Stainless Steel Weldoflange Suppliers export blind and reducing flanges made of different metals such as cast, forged, or plate components. This Standard also includes standards and recommendations for the ANSI B16.5 Weldoflange for bolting, gaskets, and flange joints.

We are a Stainless Steel Weldo Flange manufacturer in India, and we offer these Inconel Weldo Flange, Hastelloy Weldo Flange, Monel Weldo Flange, Alloy 20 Weldo Flange, Aluminium Weldo Flange, Nickel Weldo Flange, Duplex Weldo Flange, Super Duplex Weldo Flange, Incoloy Weldo Flange, Copper Weldo Flange, Copper Nickel Weldo Flange, Brass Weldo Flange, 254 Smo Weldo Flange, and Titanium Weldo Flange in all standards that are common in the world.

Weldo Flanges Specification

Dimensions of Weldo Flanges

Features of the Weldo Flange

The Weldo Flanges are manufactured of high-quality carbon steel, which has exceptional tensile strength, ductility, and corrosion resistant properties. They are also available with galvanized coated surfaces, which boosts their endurance and extends their corrosion resistance properties in the hostile environments in which they operate. The coating also helps to decrease erosion caused by harmful particles or fluids that come into touch with the weldo flanges while in use.

Benefits of Weldo Flanges

Weldo Flanges are particularly affordable since they do not require excessively long weld lengths, saving time and money when utilized in operation. The majority of these flanges are composed of carbon steel, which is more expensive than other exotic alloys such as stainless steels. Another significant advantage of this variety of flanges is that they come with pre-painted coatings that improve their entire appearance and feel, making them ideal for use.

Weldo Flanges Applications

Weldo Flanges Marking

Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.

• The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc
  LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER
• The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER
• The Marking Style For JIS, KS norms etc, special with KS Mark
  LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK
• The Marking Style for BS 4504 norms etc
  LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER
• The Marking Style for GOST 12820, GOST 12821 norms etc
  LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER
• The Marking Style for SABS 1123, SANS 1123 norms etc
  LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER

Weldo Flanges for Shipping, Handling, and Packaging

Carbon Steel Weldo Flanges and Stainless Steel Slip On Flanges are delivered with or without surface protection, as determined by the manufacturer.

The company delivers Weldo Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
