Long Weld Neck Flanges Manufacturer in India

  • Home
  • Long Weld Neck Flanges

Long Weld Neck Flanges, Long Weld Neck Flanges Exporter, Long Weld Neck Flanges Manufacturer in India, SS Long Weld Neck Flanges Price, Best Quality Long Weld Neck Flanges, Carbon Steel Long Weld Neck Flanges Supplier, Stainless Steel Long Weld Neck Flanges Stockists in Mumbai, India

Nishra Overseas LLP is a professional supplier that manufactures a variety of Long Weld Neck Flanges. We are a proud member of MASSMA, which demonstrates our strong market network and potential to grow rapidly. Established in 1997, we Nishra Overseas are a prominent producer, supplier, and distributor of a wide range of ANSI B16.5 Long Weld Neck Flanges. We also provide customized solutions to clients based on their individual needs. Our goods are widely used across numerous sectors. Our well-established infrastructure is equipped with cutting-edge gear and tools, allowing us to produce a high-quality assortment of Long Weld Neck Flanges. All activities are supervised by efficient personnel that work tirelessly to ensure the quality of our Long Weld Neck Flanges. Long Weld Neck Flanges are available at the best price and with rapid delivery.

Long Weld Neck Flanges – IBR and Non-IBR, ANSI B16.5 Long Weld Neck Flanges, SS SOF Flanges Suppliers in India, Carbon Steel Long Weld Neck – IBR and Non-IBR Flanges Exporter Supplier, EN1092, ASME B16.5 Long Weld Neck Flanges Manufacturers.

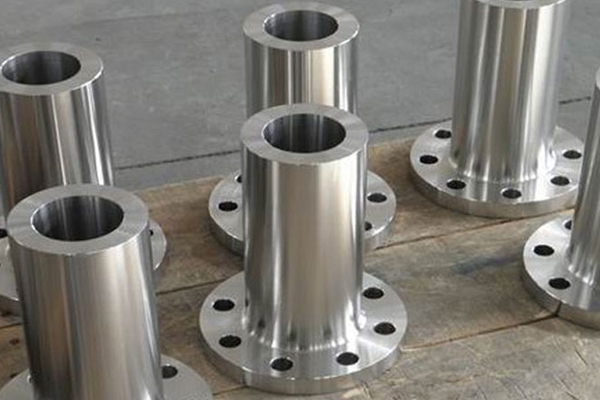

Long Weld Neck Flanges

The Long Weld Neck Flange is the most commonly used self-reinforced nozzle design. Heavy barrel nozzles have a thicker throat, making them suitable for high pressure and temperature applications. The flange end and sealing face are designed to meet ASME B16.5 for pipe sizes ½" to 24" and ASME B16.47 for pipes 26" to 60". The neck length is typically proportional to the nominal size and pressure. The typical bore for the LWN Flange is the same as the pipe size, but it can be requested with any bore. The normal barrel lengths are 9", 12", and 16", but they will be built to fit the customer's specifications. Check out our guide on ordering bespoke flanges.

The Long Weld Neck Flange is a self-reinforcing connection designed for ASME Pressure Vessel applications. The Long Weld Neck (LWN) Flange was designed to replace a Weld Neck Flange and a section of pipe in a bolt-up connection to the vessel. This design moved the tension from the neck to the base, where it linked to the vessel.

We are a Stainless Steel Long Weld Neck Flange manufacturer in India, and we offer these Inconel Weld Neck Flange, Hastelloy Weld Neck Flange, Monel Weld Neck Flange, Alloy 20 Weld Neck Flange, Aluminium Weld Neck Flange, Nickel Weld Neck Flange, Duplex Weld Neck Flange, Super Duplex Weld Neck Flange, Incoloy Weld Neck Flange, Copper Weld Neck Flange, Copper Nickel Weld Neck Flange, Brass Weld Neck Flange, 254 Smo Weld Neck Flange, and Titanium Weld Neck Flange in all standards that are common in the world.

Long Weld Neck Flange Specification

Size 1/2" (15 NB) to 48" (1200NB)
Standards ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Slip On Flanges/ SORF Flanges ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Slip On Flanges/ SORF Flanges ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Slip On Flanges/ SORF Flanges ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Slip On Flanges/ SORF Flanges Duplex, Super Duplex, Nickel Alloys
Flange Type Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Socket Weld Flange
Value Added Services CNC Machining, Customised Flanges

Dimensions of Long Weld Neck 150 Class

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD Hub Length No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size
A B C D E F G H
1/2 15 90 9.6 30 21.3 34.9 2 60.3 As Required 4 1/2 50 55 5/8 M14
3/4 20 100 11.2 38 26.7 42.9 2 69.9 As Required 4 1/2 50 65 5/8 M14
1 25 110 12.7 49 33.4 50.8 2 79.4 As Required 4 1/2 55 65 5/8 M14
1 1/4 32 115 14.3 59 42.2 63.5 2 88.9 As Required 4 1/2 55 70 5/8 M14
1 1/2 40 125 15.9 65 48.3 73 2 98.4 As Required 4 1/2 65 70 5/8 M14
2 50 150 17.5 78 60.3 92.1 2 120.7 As Required 4 5/8 70 85 3/4 M16
2 1/2 65 180 20.7 90 73 104.8 2 139.7 As Required 4 5/8 75 90 3/4 M16
3 80 190 22.3 108 88.9 127 2 152.4 As Required 4 5/8 75 90 3/4 M16
3 1/2 90 215 22.3 122 101.6 139.7 2 177.8 As Required 8 5/8 75 90 3/4 M16
4 100 230 22.3 135 114.3 157.2 2 190.5 As Required 8 5/8 75 90 3/4 M16
5 125 255 22.3 164 141.3 185.7 2 215.9 As Required 8 3/4 85 95 7/8 M20
6 150 280 23.9 192 168.3 215.9 2 241.3 As Required 8 3/4 85 100 7/8 M20
8 200 345 27 246 219.1 269.9 2 298.5 As Required 8 3/4 90 110 7/8 M20
10 250 405 28.6 305 273 323.8 2 362 As Required 12 7/8 100 115 1 M24
12 300 485 30.2 365 323.8 381 2 431.8 As Required 12 7/8 100 120 1 M24
14 350 535 33.4 400 355.6 412.8 2 476.3 As Required 12 1 115 135 1 1/8 M27
16 400 595 35 457 406.4 469.9 2 539.8 As Required 16 1 115 135 1 1/8 M27
18 450 635 38.1 505 457.2 533.4 2 577.9 As Required 16 1 1/8 125 145 1 1/4 M30
20 500 700 41.3 559 508 584.2 2 635 As Required 20 1 1/8 140 160 1 1/4 M30
24 600 815 46.1 663 610 692.2 2 749.3 As Required 20 1 1/4 150 170 1 3/8 M33

Dimensions of Long Weld Neck Flanges 300 Class

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD Hub Length No of Bolts Bolt Size UNC Machine Bolt Length RF Stud Length Hole Size ISO Stud Size
A B C D E F G H
1/2 15 95 12.7 38 21.3 34.9 2 66.7 As Required 4 1/2 55 65 5/8 M14
3/4 20 115 14.3 48 26.7 42.9 2 82.6 As Required 4 5/8 65 75 3/4 M16
1 25 125 15.9 54 33.4 50.8 2 88.9 As Required 4 5/8 65 75 3/4 M16
1 1/4 32 135 17.5 64 42.2 63.5 2 98.4 As Required 4 5/8 70 85 3/4 M16
1 1/2 40 155 19.1 70 48.3 73 2 114.3 As Required 4 3/4 75 90 7/8 M20
2 50 165 20.7 84 60.3 92.1 2 127 As Required 8 5/8 75 90 3/4 M16
2 1/2 65 190 23.9 100 73 104.8 2 149.2 As Required 8 3/4 85 100 7/8 M20
3 80 210 27 117 88.9 127 2 168.3 As Required 8 3/4 90 110 7/8 M20
3 1/2 90 230 28.6 133 101.6 139.7 2 184.2 As Required 8 3/4 95 110 7/8 M20
4 100 255 30.2 146 114.3 157.2 2 200 As Required 8 3/4 95 115 7/8 M20
5 125 280 33.4 178 141.3 185.7 2 235 As Required 8 3/4 110 120 7/8 M20
6 150 320 35 206 168.3 215.9 2 269.9 As Required 12 3/4 110 120 7/8 M20
8 200 380 39.7 260 219.1 269.9 2 330.2 As Required 12 7/8 120 140 1 M24
10 250 445 46.1 321 273 323.8 2 387.4 As Required 16 1 140 160 1 1/8 M27
12 300 520 49.3 375 323.8 381 2 450.8 As Required 16 1 1/8 145 170 1 1/4 M30
14 350 585 52.4 425 355.6 412.8 2 514.4 As Required 20 1 1/8 160 180 1 1/4 M30
16 400 650 55.6 483 406.4 469.9 2 571.5 As Required 20 1 1/4 165 190 1 3/8 M33
18 450 710 58.8 533 457 533.4 2 628.6 As Required 24 1 1/4 170 195 1 3/8 M33
20 500 775 62 587 508 584.2 2 685.8 As Required 24 1 1/4 185 205 1 3/8 M33
24 600 915 68.3 702 610 692.2 2 812.8 As Required 24 1 1/2 205 230 1 5/8 M39

Dimensions of Long Weld Neck Flanges 400 Class

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD Hub Length No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size
A B C D E F G H
1/2 15 95 14.3 38 21.3 34.9 7 66.7 As Required 4 1/2 75 5/8 M14
3/4 20 115 15.9 48 26.7 42.9 7 82.6 As Required 4 5/8 90 3/4 M16
1 25 125 17.5 54 33.4 50.8 7 88.9 As Required 4 5/8 90 3/4 M16
1 1/4 32 135 20.7 64 42.2 63.5 7 98.4 As Required 4 5/8 95 3/4 M16
1 1/2 40 155 22.3 70 48.3 73 7 114.3 As Required 4 3/4 110 7/8 M20
2 50 165 25.4 84 60.3 92.1 7 127 As Required 8 5/8 110 3/4 M16
2 1/2 65 190 28.6 100 73 104.8 7 149.2 As Required 8 3/4 120 7/8 M20
3 80 210 31.8 117 88.9 127 7 168.3 As Required 8 3/4 125 7/8 M20
3 1/2 90 230 35 133 101.6 N/A 7 184.2 As Required 8 7/8 140 1 M24
4 100 255 35 146 114.3 157.2 7 200 As Required 8 7/8 140 1 M24
5 125 280 38.1 178 141.3 185.7 7 235 As Required 8 7/8 145 1 M24
6 150 320 41.3 206 168.3 215.9 7 269.9 As Required 12 7/8 150 1 M24
8 200 380 47.7 260 219.1 269.9 7 330 As Required 12 1 170 1 1/8 M27
10 250 445 54 321 273 323.8 7 387.4 As Required 16 1 1/8 190 1 1/4 M30
12 300 520 57.2 375 323.8 381 7 450.8 As Required 16 1 1/4 205 1 3/8 M33
14 350 585 60.4 425 355.6 412.8 7 514.4 As Required 20 1 1/4 210 1 3/8 M33
16 400 650 63.5 483 406.4 469.9 7 571.5 As Required 20 1 3/8 220 1 1/2 M36
18 450 710 66.7 533 457 533.4 7 628.6 As Required 24 1 3/8 230 1 1/2 M36
20 500 775 69.9 587 508 584.2 7 685.8 As Required 24 1 1/2 240 1 3/4 M39
24 600 915 76.2 702 610 692.2 7 812.8 As Required 24 1 3/4 265 1 7/8 M45

Dimensions of Long Weld Neck Flanges 600 Class

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD Hub Length No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size
A B C D E F G H
1/2 15 95 14.3 38 21.3 34.9 7 66.7 As Required 4 1/2 75 5/8 M14
3/4 20 115 15.9 48 26.7 42.9 7 82.6 As Required 4 5/8 90 3/4 M16
1 25 125 17.5 54 33.4 50.8 7 88.9 As Required 4 5/8 90 3/4 M16
1 1/4 32 135 20.7 64 42.2 63.5 7 98.4 As Required 4 5/8 95 3/4 M16
1 1/2 40 155 22.3 70 48.3 73 7 114.3 As Required 4 3/4 110 7/8 M20
2 50 165 25.4 84 60.3 92.1 7 127 As Required 8 5/8 110 3/4 M16
2 1/2 65 190 28.6 100 73 104.8 7 149.2 As Required 8 3/4 120 7/8 M20
3 80 210 31.8 117 88.9 127 7 168.3 As Required 8 3/4 125 7/8 M20
3 1/2 90 230 35 133 101.6 N/A 7 184.2 As Required 8 7/8 140 1 M24
4 100 275 38.1 152 114.3 157.2 7 215.9 As Required 8 7/8 145 1 M24
5 125 330 44.5 189 141.3 185.7 7 266.7 As Required 8 1 165 1 1/8 M27
6 150 355 47.7 222 168.3 215.9 7 292.1 As Required 12 1 170 1 1/8 M27
8 200 420 55.6 273 219.1 269.9 7 349.2 As Required 12 1 1/8 190 1 1/4 M30
10 250 510 63.5 343 273 323.8 7 431.8 As Required 16 1 1/4 215 1 3/8 M33
12 300 560 66.7 400 323.8 381 7 489 As Required 20 1 1/4 220 1 3/8 M33
14 350 605 69.9 432 355.6 412.8 7 527 As Required 20 1 3/8 235 1 1/2 M36
16 400 685 76.2 495 406.4 469.9 7 603.2 As Required 20 1 1/2 255 1 5/8 M39
18 450 745 82.6 546 457 533.4 7 654 As Required 20 1 5/8 275 1 3/4 M42
20 500 815 88.9 610 508 584.2 7 723.9 As Required 24 1 5/8 285 1 3/4 M42

Dimensions of Long Weld Neck Flanges 900 Class

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD Hub Length No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size
A B C D E F G H
1/2 15 120 22.3 38 21.3 34.9 7 82.6 As Required 4 3/4 110 7/8 M20
3/4 20 130 25.4 44 26.7 42.9 7 88.9 As Required 4 3/4 115 7/8 M20
1 25 150 28.6 52 33.4 50.8 7 101.6 As Required 4 7/8 125 1 M24
1 1/4 32 160 28.6 64 42.2 63.5 7 111.1 As Required 4 7/8 125 1 M24
1 1/2 40 180 31.8 70 48.3 73 7 123.8 As Required 4 1 140 1 1/8 M27
2 50 215 38.1 105 60.3 92.1 7 165.1 As Required 8 7/8 145 1 M24
2 1/2 65 245 41.3 124 73 104.8 7 190.5 As Required 8 1 160 1 1/8 M27
3 80 240 38.1 127 88.9 127 7 190.5 As Required 8 7/8 145 1 M24
4 100 290 44.5 159 114.3 157.2 7 235 As Required 8 1 1/8 170 1 1/4 M30
5 125 350 50.8 190 141.3 185.7 7 279.4 As Required 8 1 1/4 190 1 3/8 M33
6 150 380 55.6 235 168.3 215.9 7 317.5 As Required 12 1 1/8 190 1 1/4 M30
8 200 470 63.5 298 219.1 269.9 7 393.7 As Required 12 1 3/8 220 1 1/2 M36
10 250 545 69.9 368 273 323.8 7 469.9 As Required 16 1 3/8 235 1 1/2 M36
12 300 610 79.4 419 323.8 381 7 533.4 As Required 20 1 3/8 255 1 1/2 M36
14 350 640 85.8 451 355.6 412.8 7 558.8 As Required 20 1 1/2 275 1 5/8 M39
16 400 705 88.9 508 406.4 469.9 7 616 As Required 20 1 5/8 285 1 3/4 M42
18 450 785 101.6 565 457 533.4 7 685.8 As Required 20 1 7/8 325 2 M48
20 500 855 108 622 508 584.2 7 749.3 As Required 20 2 350 2 1/8 M52
24 600 1040 139.7 749 610 692.2 7 901.7 As Required 20 2 1/2 440 2 5/8 M64

Dimensions of Long Weld Neck Flanges 1500 Class

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD Hub Length No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size
A B C D E F G H
1/2 15 120 22.3 38 21.3 34.9 7 82.6 As Required 4 3/4 110 7/8 M20
3/4 20 130 25.4 44 26.7 42.9 7 88.9 As Required 4 3/4 115 7/8 M20
1 25 150 28.6 52 33.4 50.8 7 101.6 As Required 4 7/8 125 1 M24
1 1/4 32 160 28.6 64 42.2 63.5 7 111.1 As Required 4 7/8 125 1 M24
1 1/2 40 180 31.8 70 48.3 73 7 123.8 As Required 4 1 140 1 1/8 M27
2 50 215 38.1 105 60.3 92.1 7 165.1 As Required 8 7/8 145 1 M24
2 1/2 65 245 41.3 124 73 104.8 7 190.5 As Required 8 1 160 1 1/8 M27
3 80 265 47.7 133 88.9 127 7 203.2 As Required 8 1 1/8 180 1 1/4 M30
4 100 310 54 162 114.3 157.2 7 241.3 As Required 8 1 1/4 195 1 3/8 M33
5 125 375 73.1 197 141.3 185.7 7 292.1 As Required 8 1 1/2 250 1 5/8 M39
6 150 395 82.6 229 168.3 215.9 7 317.5 As Required 12 1 3/8 260 1 1/2 M36
8 200 485 92.1 292 219.1 269.9 7 393.7 As Required 12 1 5/8 290 1 3/4 M42
10 250 585 108 368 273 323.8 7 482.6 As Required 12 1 7/8 335 2 M48
12 300 675 123.9 451 323.8 381 7 571.5 As Required 16 2 375 2 1/8 M52
14 350 750 133.4 495 355.6 412.8 7 635 As Required 16 2 1/4 405 2 3/8 M56
16 400 825 146.1 552 406.4 469.9 7 704.8 As Required 16 2 1/2 445 2 5/8 M64
18 450 915 162 597 457 533.4 7 774.7 As Required 16 2 3/4 495 2 7/8 M72
20 500 985 177.8 641 508 584.2 7 831.8 As Required 16 3 540 3 1/8 M76
24 600 1170 203.2 762 610 692.2 7 990.6 As Required 16 3 1/2 615 3 5/8 M90

Dimensions of Long Weld Neck Flanges 2500 Class

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Weld Neck OD RF Dia. RF Height PCD Hub Length No of Bolts Bolt Size UNC RF Stud Length Hole Size ISO Stud Size
A B C D E F G H
1/2 15 120 22.3 38 21.3 34.9 7 82.6 As Required 4 3/4 110 7/8 M20
3/4 20 130 25.4 44 26.7 42.9 7 88.9 As Required 4 3/4 115 7/8 M20
1 25 150 28.6 52 33.4 50.8 7 101.6 As Required 4 7/8 125 1 M24
1 1/4 32 160 28.6 64 42.2 63.5 7 111.1 As Required 4 7/8 125 1 M24
1 1/2 40 180 31.8 70 48.3 73 7 123.8 As Required 4 1 140 1 1/8 M27
2 50 215 38.1 105 60.3 92.1 7 165.1 As Required 8 7/8 145 1 M24
2 1/2 65 245 41.3 124 73 104.8 7 190.5 As Required 8 1 160 1 1/8 M27
3 80 265 47.7 133 88.9 127 7 203.2 As Required 8 1 1/8 180 1 1/4 M30
4 100 310 54 162 114.3 157.2 7 241.3 As Required 8 1 1/4 195 1 3/8 M33
5 125 375 73.1 197 141.3 185.7 7 292.1 As Required 8 1 1/2 250 1 5/8 M39
6 150 395 82.6 229 168.3 215.9 7 317.5 As Required 12 1 3/8 260 1 1/2 M36
8 200 485 92.1 292 219.1 269.9 7 393.7 As Required 12 1 5/8 290 1 3/4 M42
10 250 585 108 368 273 323.8 7 482.6 As Required 12 1 7/8 335 2 M48
12 300 675 123.9 451 323.8 381 7 571.5 As Required 16 2 375 2 1/8 M52
14 350 750 133.4 495 355.6 412.8 7 635 As Required 16 2 1/4 405 2 3/8 M56
16 400 825 146.1 552 406.4 469.9 7 704.8 As Required 16 2 1/2 445 2 5/8 M64
18 450 915 162 597 457 533.4 7 774.7 As Required 16 2 3/4 495 2 7/8 M72
20 500 985 177.8 641 508 584.2 7 831.8 As Required 16 3 540 3 1/8 M76
24 600 1170 203.2 762 610 692.2 7 990.6 As Required 16 3 1/2 615 3 5/8 M90

Advantages of Long Weld Neck Flanges

Steel welding neck flanges (WN flanges) are a popular choice for businesses that require durability and strength in high-pressure applications.

Their distinctive shape decreases stress concentration at the base, ensuring dependability in harsh situations. A decreasing weld neck flange is an excellent choice for connecting pipes of varying sizes while maintaining system integrity.

These flanges are versatile for a variety of applications, thanks to the availability of raised and other face types. Weld neck flanges are a better choice for long-term performance because to its tapered hub shape, which allows for smooth stress distribution.

Long Weld Neck Flanges Applications

Oil and Gas Processing Dairy and Food Processing
Desalination Pesticides
Pulp and Paper Sugar Factory
Energy industries Power Plants
Ship Building Fertilizers
Machine Building Nuclear
Pharmaceuticals Chemicals
Textile Machinery Synthetic Fibers
Construction Modern Architecture
Refinery & Petrochemicals Water treatment facilities

Long Weld Neck Flanges Marking

Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.

  • The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc
    LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER
  • The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER
  • The Marking Style For JIS, KS norms etc, special with KS Mark
    LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK
  • The Marking Style for BS 4504 norms etc
    LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER
  • The Marking Style for GOST 12820, GOST 12821 norms etc
    LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER
  • The Marking Style for SABS 1123, SANS 1123 norms etc
    LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER

Long Weld Neck Flanges for Shipping, Handling, and Packaging

Carbon Steel Long Weld Neck Flanges and Stainless Steel Socket Weld Flanges are delivered with or without surface protection, as determined by the manufacturer.

The company delivers Long Weld Neck Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.

Steel Flanges
Other Flanges
Other Products
Global Supplier Contries
Angola
Australia
Austria
Bahrain
Belgium
Brazil
Canada
Chile
Denmark
Egypt
France
Germany
India
Indonesia
Iran
Israel
Italy
Japan
Jordan
Kazakhstan
Kuwait
Malaysia
Maxico
Morocco
Netherlands
Nigeria
Oman
Philippines
Poland
Qatar
Romania
Russia
Saudi Arabia
Singapore
South Africa
South Korea
Spain
Sweden
Switzerland
Taiwan
Thailand
Turkey
UAE
UK
USA
Venezuela
Vietnam
Zambia
Copyright © 2025 Nishra Overseas LLP All Rights Reserved.
