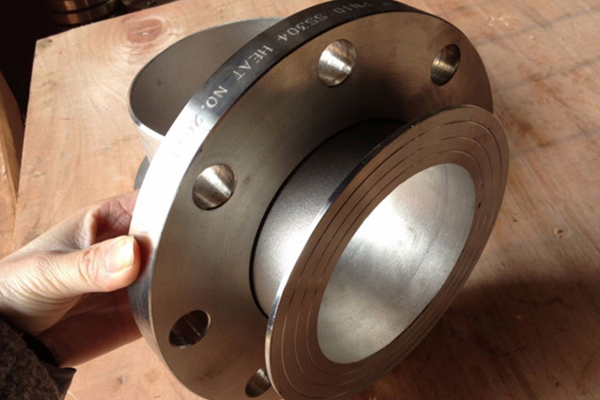

Lapped Joint Flanges Manufacturer in India

Lapped Joint Flanges, Lapped Joint Flanges Exporter, Lapped Joint Flanges Manufacturer in India, SS Lapped Joint Flanges Price, Best Quality Lapped Joint Flanges, Carbon Steel Lapped Joint Flanges Supplier, Stainless Steel Lapped Joint Flanges Stockists in Mumbai, India

Nishra Overseas LLP is a top manufacturer of Lap Joint Flanges in Mumbai, India. Our stainless steel lap joint flange was created utilizing premium raw materials and cutting-edge technology in accordance with national and international industry standards. Before being packaged, our ANSI B16.5 Lap Joint Flange and other items undergo a number of quality inspections. The petrochemical, oil and gas, building and construction, and chemical industries are among the industries that use these ANSI B16.36 lap joint flanges. Moreover, we can customize the SS Lap Joint Flange to meet the needs of our clients.

Lapped Joint Flanges – IBR and Non-IBR, ANSI B16.5 Lapped Joint Flanges, SS SOF Flanges Suppliers in India, Carbon Steel Lapped Joint – IBR and Non-IBR Flanges Exporter Supplier, EN1092, ASME B16.5 Lapped Joint Flanges Manufacturers.

Lapped joint flanges slide directly over the pipe. It is commonly used with stub end fittings and is applied to the stub end and lap joint pipe flanges. Rotating around the stub end is also free. These pipe flanges' primary advantage is their frequent disassembly, which leads to their widespread use in various applications. With a lap-joint ring flange positioned over a stub end, the assembly's two components are the lap-joint flanges. After welding the stub end to the pipe, the flange ring can be turned to match the matching flange. Large or difficult-to-adjust flanges are fitted with lap-joint flanges that have a stub end flange connection.

This sort of flange is required in two piping components, each of which is connected with a stub end and a loose backing flange. The loose backing flanges that are butt-welded to the pipe fit the outside diameter of the outside stub end. This allows the backing flange to be rotated, which is especially helpful when the flange needs to be orientaled during erection. Our company uses lapped joint flanges in a very practical and in-demand product. We export our high quality High Hub Blind flanges to Saudi Arabia, UAE, Iran, Kuwait, Egypt and Qatar.

We are a Stainless Steel Lapped Joint Flange manufacturer in India, and we offer these Inconel Lapped Joint Flange, Hastelloy Lapped Joint Flange, Monel Lapped Joint Flange, Alloy 20 Lapped Joint Flange, Aluminium Lapped Joint Flange, Nickel Lapped Joint Flange, Duplex Lapped Joint Flange, Super Duplex Lapped Joint Flange, Incoloy Lapped Joint Flange, Copper Lapped Joint Flange, Copper Nickel Lapped Joint Flange, Brass Lapped Joint Flange, 254 Smo Lapped Joint Flange, and Titanium Lapped Joint Flange in all standards that are common in the world.

Lapped Joint Flanges Specification

Dimensions of Lapped Joint Flanges

What is Lapped Joint Flanges

The [Lap Joint Flange] is a vital accessory used to connect pipes and fittings in a wide range of piping systems. This flange is designed so that it can be used with a stub end for convenient, rapid joining or separation. This flange is widely utilized in several industries, including oil and gas, chemical processing, and water treatment.

Material Specifications
We provide [Lap Joint Flanges] composed of high-quality materials such as stainless steel, carbon steel, and alloy steel, to ensure suitable strength, corrosion resistance, and durability. The [Lap Joint Flange] is generally recognized for its ability to withstand misalignment in the piping system, hence it is recommended for use in big industrial applications.

Technical Specifications
The [Lap Joint Flanges] are available in diameters ranging from 1/2 inch to 48 inches, covering the needs of even the largest pipelines. They can endure pressures of 1500 PSI and temperatures ranging from -20°C to 400°C. Common dimensions include the [Lap Joint Flange Dimensions 150], which are intended to provide quality performance in a variety of operational scenarios.

Standards & Compliance
In contrast, the pipe flanges are constructed in accordance with international standards such as ASTM, ASME, and ISO 9001. As the primary suppliers of such lapped joint flanges, we pledge to put things right so that our goods can undergo thorough testing in accordance with such standards. Customers are assured of safety, reliability, and performance. Certification from a lapped-joint flange supplier indicates excellent management and exceptional customer service.

Usage Instructions: Regular maintenance, including inspection and cleaning, is recommended to ensure that your [Lap Joint Flange] performs well and lasts a long time. Measures to ensure adequate specifications during installation Countermeasures are primarily associated with installation. Read on in the user handbook for detailed troubleshooting alternatives and accurate maintenance information, or contact us directly through our technical support team.

Features Lapped Joint Flanges

• Uses superior sealing technology to provide a tight closing with no leaks.
• As a result, the [Lap Joint Flange] is considered to be built for simple assembly and disassembly of a system that frequently requires maintenance.
• The ease of installation and maintenance of a lap joint flange results in a versatile design, lowering downtime and associated labor costs.

Benefits: Lapped Joint Flanges

• Its extended service life and low maintenance requirements are achieved by the use of very durable construction materials and design elements.
• The [Lap Joint Flange] is extremely useful in preventing leaks, ensuring high reliability with minimal downtime, and protecting important equipment from damage.
• Because it is competitive from [Lap Joint Flange Suppliers], it will supply cost-effective flanges for many enterprises in terms of both quality and quantity.

Lapped Joint Flanges Applications

Lapped Joint Flanges Marking

Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.

• The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc
  LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER
• The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER
• The Marking Style For JIS, KS norms etc, special with KS Mark
  LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK
• The Marking Style for BS 4504 norms etc
  LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER
• The Marking Style for GOST 12820, GOST 12821 norms etc
  LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER
• The Marking Style for SABS 1123, SANS 1123 norms etc
  LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER

Lapped Joint Flanges for Shipping, Handling, and Packaging

Carbon Steel Lapped Joint Flanges and Stainless Steel Socket Weld Flanges are delivered with or without surface protection, as determined by the manufacturer.

The company delivers Lapped Joint Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
