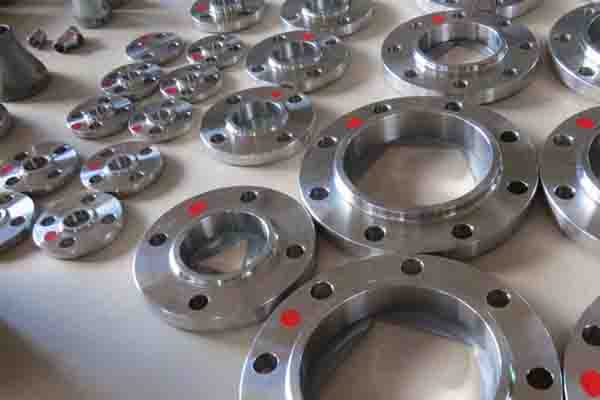

Nishra Overseas LLP is one of the top separate manufacturers, suppliers, and exporters of high-quality slip on flanges in Mumbai, India, and around the world. SORF flanges are perfect for applications requiring less pressure. The cost of fabricating these pipes is decreased by welding. They are offered in a large range of sizes and uses. The Class 150 slip-on flange is a widely used pipe flange type. The face of these SORF Flanges Class 150 is usually flat or raised. The flange face is squared off from the pipe, and the bolt holes are lined up. Slip On Flanges come in sizes ranging from 1/4" to any size. We offer high quality ASME/ANSI/DIN standard slip-on flanges class 150 in India. Carbon steel slip-on flanges and stainless steel slip-on flanges in common sizes are available for fast delivery.

Slip on Flanges – IBR and Non-IBR, ANSI B16.5 Slip On Flanges, SS SOF Flanges Suppliers in India, Carbon Steel Slip – IBR and Non-IBR Flanges Exporter Supplier, EN1092, ASME B16.5 Slip on Flanges Manufacturers.

We provide a large selection of Slip On Flanges to our valued customers, supported by a group of experts. We take great pleasure in creating precise, expertly manufactured slip-on flanges. The pipe is supplied with slip-on flanges, which are then fillet welded. A Slip On Flange's calculated strength under internal pressure is around two-thirds that of Welding Neck Flanges, and its fatigue life is roughly one-third that of the latter. These are flanges that are welded into place after sliding over the end of pipe. To provide the pipe enough strength and stop leaks, the flanges are slipped over it and then welded on the inside and outside.

Slip on rf flanges get their name from the fact that the gasket surface is lifted above the face of the bolting circle. These raised face flanges are easy to detect and are used in a variety of process applications. A slip on blind flange is a blank disk with a bolthole. These blind flanges are used to either terminate or isolate pipe systems. Slip on flange welding involves first slipping pipe flanges over the pipe, followed by fillet welding. In this slip on flange welding procedure, the fitting or pipe is set back from the flange face at a distance equal to the wall thickness (-0" +1/16"). Nishra Overseas is a prominent manufacturer and supplier of slip on flanges in India, with clients all over the world. Whatever your slip on flanges need, we guarantee the greatest quality at the best pricing. Please contact and speak with us.

We are a Stainless Steel Slip on Flange manufacturer in India, and we offer these Inconel Slip on Flange, Hastelloy Slip on Flange, Monel Slip on Flange, Alloy 20 Slip on Flange, Aluminium Slip on Flange, Nickel Slip on Flange, Duplex Slip on Flange, Super Duplex Slip on Flange, Incoloy Slip on Flange, Copper Slip on Flange, Copper Nickel Slip on Flange, Brass Slip on Flange, 254 Smo Slip on Flange, and Titanium Slip on Flange in all standards that are common in the world.

Slip On Flanges Specification

Size	1/2″ (15 NB) to 48″ (1200NB)
Standards	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings	Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 \| PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Slip On Flanges/ SORF Flanges	ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Slip On Flanges/ SORF Flanges	ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Slip On Flanges/ SORF Flanges	ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Slip On Flanges/ SORF Flanges	Duplex, Super Duplex, Nickel Alloys
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment	Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services	CNC Machining, Customised Flanges

Dimensions of Slip On Flanges

ANSI/ASME/ASA B16.5 150lb/sq.in. Flanges SO-RF
ø	D	b	g	m	J	h	k	Holes	l	Kg.
1/2"	88,9	11,1	34,9	30,2	22,3	15,9	60,3	4	15,9	0,400
3/4"	98,4	12,7	42,9	38,1	27,7	15,9	69,8	4	15,9	0,700
1"	107,9	14,3	50,8	49,2	34,5	17,5	79,4	4	15,9	0,800
1 1/4"	117,5	15,9	63,5	58,8	43,2	20,6	88,9	4	15,9	1,100
1 1/2"	127,0	17,5	73,0	65,1	49,5	22,2	98,4	4	15,9	1,400
2"	152,4	19,0	92,1	77,8	62,0	25,4	120,6	4	19,0	2,200
2 1/2"	177,8	22,2	104,8	90,5	74,7	28,6	139,7	4	19,0	3,600
3"	190,5	23,8	127,0	107,9	90,7	30,2	152,4	4	19,0	4,100
3 1/2"	215,9	23,8	139,7	122,2	103,4	31,7	177,8	8	19,0	5,200
4"	228,6	23,8	157,2	134,9	116,1	33,3	190,5	8	19,0	5,600
5"	254,0	23,8	185,7	163,6	143,8	36,5	215,9	8	22,2	6,300
6"	279,4	25,4	215,9	192,1	170,7	39,7	241,3	8	22,2	7,500
8"	342,9	28,6	269,9	246,1	221,5	44,4	298,4	8	22,2	12,600
10"	406,4	30,2	323,8	304,8	276,3	49,2	361,9	12	25,4	18,500
12"	482,6	31,7	381,0	365,1	327,1	55,6	431,8	12	25,5	28,000
14"	533,4	34,9	412,7	400,0	359,1	57,1	476,2	12	28,6	36,000
16"	596,9	36,5	469,9	457,2	410,5	63,5	539,7	16	28,6	46,000
18"	635,0	39,7	533,4	504,8	461,8	68,3	577,8	16	31,7	50,000
20"	698,5	42,9	584,2	558,8	513,1	73,0	635,0	20	31,7	64,000
22"	749,3	46,0	641,2	609,6	564,4	79,4	692,1	20	34,9	72,000
24"	812,8	47,6	692,1	663,6	615,9	82,5	749,3	20	34,9	89,000

ANSI/ASME/ASA B16.5 600lb/sq.in. Flanges WN-RF
ø	D	b	g	m	J	h	k	Holes	l	Kg.
1/2"	95,2	14,3	34,9	38,1	22,3	22,2	66,7	4	15,9	0,800
3/4"	117,5	15,9	42,9	47,6	27,7	25,4	82,5	4	19,0	1,400
1"	123,8	17,5	50,8	54,0	34,5	27,0	88,9	4	19,0	1,600
1 1/4"	133,3	20,6	63,5	63,5	43,2	28,6	98,4	4	19,0	2,100
1 1/2"	155,6	22,2	73,0	69,8	49,5	31,7	114,3	4	22,2	3,100
2"	165,1	25,4	92,1	84,1	62,0	36,5	127,0	8	19,0	3,700
2 1/2"	190,5	28,6	104,8	100,0	74,7	41,3	149,2	8	22,2	5,400
3"	209,5	31,7	127,0	117,5	90,7	46,0	168,3	8	22,2	7,300
3 1/2"	228,6	34,9	139,7	133,3	103,4	49,2	184,1	8	25,4	8,900
4"	273,0	38,1	157,2	152,4	116,1	54,0	215,9	8	25,4	11,800
5"	330,2	44,4	185,7	188,9	143,8	60,3	266,7	8	28,6	24,500
6"	355,6	47,6	215,9	222,2	170,7	66,7	292,1	12	28,6	29,500
8"	419,1	55,6	269,9	273,0	221,5	76,2	349,2	12	31,7	43,000
10"	508,0	63,5	323,8	342,8	276,3	85,7	431,8	16	34,9	70,000
12"	558,8	66,7	381,0	400,0	327,1	92,1	488,9	20	34,9	86,000
14"	603,2	69,8	412,7	431,8	359,1	93,7	527,0	20	38,1	100,000
16"	685,8	76,2	469,9	495,3	410,5	106,4	603,2	20	41,3	142,000
18"	742,9	82,5	533,4	546,1	461,8	117,5	654,0	20	44,4	175,000
20"	812,8	88,9	584,2	609,6	513,1	127,0	723,9	24	44,4	232,000
22"	869,9	95,2	641,2	666,7	564,4	133,3	777,9	24	47,6	292,000
24"	939,8	101,6	692,1	717,5	615,9	139,7	838,2	24	50,8	330,000

DIN86029 PN10 Hubbed Slip on Flanges For Welding

DIN86029 PN10 Hubbed Slip on Flanges For Welding in forged steel, Stainless Steel, Carbon steel: C22.8, RST37.2, S235JR, P235GH, P245GH, P250GH, ASTM A105, ASTM A182 F304 (1.4306), F304L(1.4307), F316(1.4404), F316L(1.4404), F321(1.4541) etc.

Rated Diameter	O.D. of Pipe	Flange Parameter					Neck Size		Size of R.F.		Bolts		Approx. Weight
DN	d1	D	d5	b	k	h	d3	r	d4	f	No. of holes	d2	KG
10	17.2	90	17.7	14	60	20	30	4	40	2	4	14	0.56
15	21.3	95	22	14	65	20	35	4	45	2	4	14	0.62
20	26.9	105	27.6	16	75	24	45	4	58	2	4	14	0.91
25	33.7	115	34.4	16	85	24	52	5	68	2	4	14	1.09
32	42.4	140	43.1	16	100	26	60	5	78	2	4	18	1.58
40	48.3	150	49	16	110	26	70	5	88	3	4	18	1.76
50	60.3	165	61.1	18	125	28	85	5	102	3	4	18	2.39
65	76.1	185	77.1	18	145	32	105	5	122	3	4	18	3.1
80	88.9	200	90.3	20	160	34	118	5	138	3	8	18	3.77
100	114.3	220	115.9	20	180	38	140	5	158	3	8	18	4.29
125	139.7	250	141.6	22	210	40	168	5	188	3	8	18	5.86
150	168.3	285	170.5	22	240	44	196	5	212	3	8	22	7.22
175	193.7	315	196.1	24	270	44	224	6	242	3	8	22	9.18
200	219.4	340	222	24	295	44	247	6	268	3	8	22	9.95
250	273	395	276	26	350	46	300	6	320	3	12	22	12.69
300	323.9	445	327	26	400	46	352	6	370	4	12	22	14.4
350	355.6	505	359	26	460	53	398	10	430	4	16	22	22.36
400	406.4	565	410	26	515	57	448	10	482	4	16	26	26.85
450	457	615	461	28	565	62	502	10	532	4	20	26	32.53
500	508	670	512	28	620	67	552	10	585	4	20	26	37.84
600	610	780	614	28	725	75	658	10	685	5	20	30	49.32
700	711	895	716	30	840	77	760	10	800	5	24	30	63.86
800	813	1015	818	32	950	84	864	10	905	5	24	33	85.19
900	914	1115	920	34	1050	88	969	10	1005	5	28	33	101.4
1000	1016	1230	1022	34	1160	92	1071	10	1110	5	28	36	119.7

Properties of Slip-On Flanges

Slip-on flanges have multiple features that make them useful for a variety of industrial applications. Here are the main characteristics of slip-on flanges:

Simple installation with little alignment required.
Flange connections can be made at a reasonable cost.
Versatile and suitable with a variety of pipe materials.
Available with various pressure levels.
Resistant to thermal expansion and contraction.
Ideal for low-pressure systems.
Capable of being welded for extra strength.
Space-saving design allows for efficient installation.

Slip-On Flanges Applications

Oil and Gas Processing	Dairy and Food Processing
Desalination	Pesticides
Pulp and Paper	Sugar Factory
Energy industries	Power Plants
Ship Building	Fertilizers
Machine Building	Nuclear
Pharmaceuticals	Chemicals
Textile Machinery	Synthetic Fibers
Construction	Modern Architecture
Refinery & Petrochemicals	Water treatment facilities

Slip On Flanges Marking

Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.

The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc
LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER
The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER
The Marking Style For JIS, KS norms etc, special with KS Mark
LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK
The Marking Style for BS 4504 norms etc
LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER
The Marking Style for GOST 12820, GOST 12821 norms etc
LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER
The Marking Style for SABS 1123, SANS 1123 norms etc
LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER

Slip On Flanges for Shipping, Handling, and Packaging

Carbon Steel Slip On Flanges and Stainless Steel Slip On Flanges are delivered with or without surface protection, as determined by the manufacturer.

The company delivers Slip On Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
