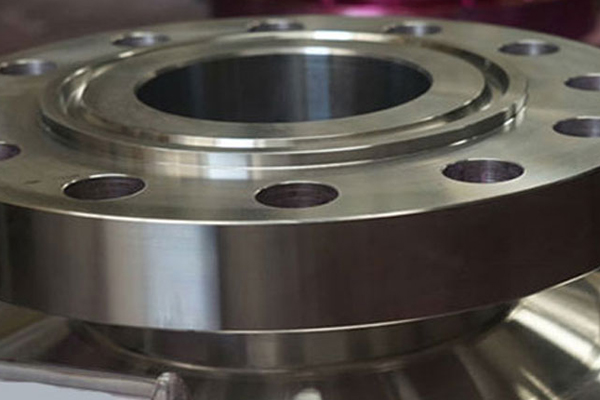

RTJ Flanges Manufacturer in India

RTJ Flanges, RTJ Flanges Exporter, RTJ Flanges Manufacturer in India, SS RTJ Flanges Price, Best Quality RTJ Flanges, Carbon Steel RTJ Flanges Supplier, Stainless Steel RTJ Flanges Stockists in Mumbai, India

Nishra Overseas LLP is one of the leading manufacturers, supplier and exporters of industrial Ring Type Joint Flanges. The best-in-class Ring Type Joint Flanges (RTJ) are what we make, provide, and export. A deep groove carved into the face of a machined metallic ring is known as a Ring type joint flange (RTJ). When the flange's connecting bolts are tightened, the metal ring that lies in this groove is crushed. This compression gives the pipe or connector a tight-fitting, leak-proof seal. High-temperature and high-pressure applications traditionally utilize stainless steel ring-type joint flanges, but carbon steel ring-type joint flanges are spill-proof. They can be produced using a variety of materials.

RTJ Flanges – IBR and Non-IBR, ANSI B16.5 RTJ Flanges, SS SOF Flanges Suppliers in India, Carbon Steel RTJ – IBR and Non-IBR Flanges Exporter Supplier, EN1092, ASME B16.5 Slip on Flanges Manufacturers.

We are concentrating on meeting our esteemed clients' needs. We offer premium RTJ Flanges with exceptional features and a host of helpful services. We guarantee that our clients will receive flanges that are dimensionally precise. Throughout the manufacturing process, we test these flanges using a variety of procedures to verify a number of quality factors. We offer our premium RTJ Flanges in every size and specification. We also provide them in bespoke sizes to meet the needs of our valued customers. We offer our customers helpful service with ordered flanges at fair prices and within the set time frame.

Ring Type Joint Flanges (RTJ) are commonly used in high-temperature applications above 427°C or under extreme pressure. Steel ring gaskets fit into the grooves that are separated into the faces of the flanges. When the bolts are tightened, the gasket in these flanges compresses and seals into the slots. The gasket is coined to make intimate contact with the grooves and form a metal-to-metal seal. The elevated face of the RTJ flange has a ring groove punched into it. There is no function for this elevated face in the sealing process. Ring gaskets are used to seal these RTJ flanges; the raised faces of the tightened and linked flanges may come into touch with one another. The compressed gasket cannot carry additional force beyond bolt tension and vibration, therefore movement cannot further crush the gasket and reduce connection stress.

We are a Stainless Steel RTJ Flange manufacturer in India, and we offer these Inconel RTJ Flange, Hastelloy RTJ Flange, Monel RTJ Flange, Alloy 20 RTJ Flange, Aluminium RTJ Flange, Nickel RTJ Flange, Duplex RTJ Flange, Super Duplex RTJ Flange, Incoloy RTJ Flange, Copper RTJ Flange, Copper Nickel RTJ Flange, Brass RTJ Flange, 254 Smo RTJ Flange, and Titanium RTJ Flange in all standards that are common in the world.

RTJ Flanges Specification

Dimensions of ANSI B16.5 RTJ Flanges 150 Class

Dimensions of ANSI B16.5 RTJ Flanges 400/600 Class

Dimensions of ANSI B16.5 RTJ Flanges 900 Class

Dimensions of ANSI B16.5 RTJ Flanges 1500 Class

Dimensions of ANSI B16.5 RTJ Flanges 2500 Class

ASME B16.5 RTJ Flanges Pressure Ratings

What is RTJ Flanges

The Ring Type Joint, or RTJ, is the type of gasket required for the flange. The Ring Type Joint was created for the petroleum and petrochemical sectors, where higher pressures and temperatures exist. The sealing surface is a high tolerance groove carved into the face of the Flange, having a maximum finish of 63 RMS. When the bolts are torqued down, the RTJ ring compresses into the groove of the flanges, forming a seal.

Ring Type Joint gaskets are manufactured to ASME B16.20 standards and are suitable for use with ANSI B16.5, ASME B16.47 Series A, and API 6A flanges.

The advantage of utilizing an RTJ flange and ring is that the gasket is constrained to a groove with two sealing surfaces. The groove ensures that the ring aligns itself as the bolts are tightened. On these flanges, the sealing pressure increases as the process pressure increases.

One disadvantage of employing RTJ flanges is that the grooves might accumulate dirt or moisture while the flange is open. It is critical that the grooves and ring gaskets are properly aligned in order to achieve the proper seal. The seal must be kept throughout the operation cycle.

Technical data sheets for Ring Joint Flanges are available on the Nishra Overseas website for your convenience.

RTJ Flanges Applications

RTJ Flanges Marking

Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.

• The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc
  LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER
• The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER
• The Marking Style For JIS, KS norms etc, special with KS Mark
  LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK
• The Marking Style for BS 4504 norms etc
  LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER
• The Marking Style for GOST 12820, GOST 12821 norms etc
  LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER
• The Marking Style for SABS 1123, SANS 1123 norms etc
  LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER

RTJ Flanges for Shipping, Handling, and Packaging

Carbon Steel RTJ Flanges and Stainless Steel Socket Weld Flanges are delivered with or without surface protection, as determined by the manufacturer.

The company delivers RTJ Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
