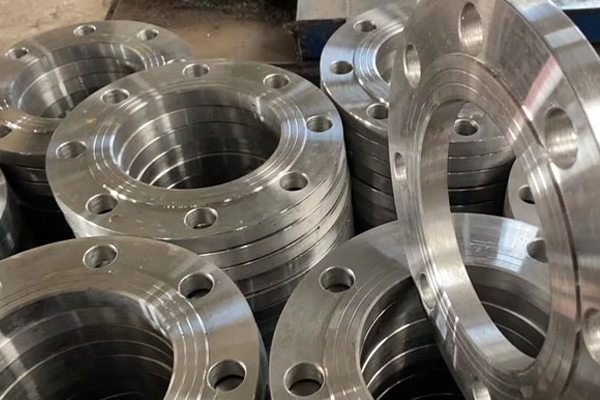

Nishra Overseas LLP is a top manufacturer, supplier and exporter of JIS B2220 Flanges in India. This flange is simpler to identify since the jis b2220's inner diameter is produced slightly larger than the pipe's outside diameter. In general, medium grade JIS carbon steel flanges have a moderate tensile strength and reasonable corrosion resistance. It is simple to mill mild carbon grade steel jis b2220 blind flange. As a result, our customers favor employing these JIS B2220 Flanges for structural building projects.

JIS B 2220 Flanges – IBR and Non-IBR, ANSI B16.5 JIS B 2220 Flanges, SS SOF Flanges Suppliers in India, Carbon Steel JIS B 2220 – IBR and Non-IBR Flanges Exporter Supplier, EN1092, ASME B16.5 JIS B 2220 Flanges Manufacturers.

Our company offers a comprehensive range of flanges, such as SO, WN, BL, SW, LJ, 5K SOP SOH BL Flange / JIS B 2220, etc. This has been carefully designed to meet all international quality standards. These flanges are very dependable, long-lasting, and resistant to corrosion. Our flanges are used in various industries, including engineering, construction, chemical, oil field, and power plants. We offer these flanges in a variety of sizes based on the specifications specified by our customers. To maximize client satisfaction, we ensure safe packaging and timely delivery of the required consignment.

JIS B 2220 10K Flange Specifications. We provide these JIS stainless steel B 2220 10k rjt flanges, JIS carbon steel B 2220 10k blind flanges, JIS alloy steel B 2220 10k weld neck flanges, JIS stainless steel B 2220 10k slip-on flanges, and JIS carbon steel B 2220 10k socket weld flanges in all industry standards, including ANSI/ASME (USA), BS10 (British/Australian), PN/ DIN (European), and JIS/KS (Japanese/Korean).

We are a Stainless Steel JIS B 2220 Flange manufacturer in India, and we offer these Inconel JIS B 2220 Flange, Hastelloy JIS B 2220 Flange, Monel JIS B 2220 Flange, Alloy 20 JIS B 2220 Flange, Aluminium JIS B 2220 Flange, Nickel JIS B 2220 Flange, Duplex JIS B 2220 Flange, Super Duplex JIS B 2220 Flange, Incoloy JIS B 2220 Flange, Copper JIS B 2220 Flange, Copper Nickel JIS B 2220 Flange, Brass JIS B 2220 Flange, 254 Smo JIS B 2220 Flange, and Titanium JIS B 2220 Flange in all standards that are common in the world.

JIS B 2220 Flanges Specification

Size	1/2" (15 NB) to 48" (1200NB)
Standards	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings	Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 \| PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Slip On Flanges/ SORF Flanges	ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Slip On Flanges/ SORF Flanges	ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Slip On Flanges/ SORF Flanges	ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Slip On Flanges/ SORF Flanges	Duplex, Super Duplex, Nickel Alloys
Flange Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment	Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized Socket Weld Flange
Value Added Services	CNC Machining, Customised Flanges

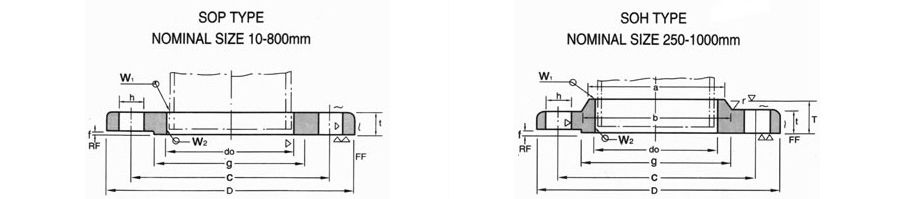

Dimensions & Weight Chart of JIS B 2220 10K Flanges

Nominal	Outside	Inside	Outside	Sectional Dimensions of Flange	Bolt Hole			Nor	Approx.
Dia. of	Dia. of	Dia.of	Dia. of	t	T	Dia. of Hub		r	Dia. of	Dia. of	Bolt.	No.	Hole	Bolt	Weight
Flange	Steel	Flange	Flange			a	b		Face	Rai- sed Face	Circle	of Bolt	Dia.	Size	(kg)
	Pipe	do	D			a	b		f	g	Dia	Holes	h		SOP	BL	SOH
10	17.3	17.8	90.0	12	-	-	-	-	1	46	65	4	15	M12	0.51	0.53	-
15	21.7	22.2	95.0	12	-	-	-	-	1	51	70	4	15	M12	0.56	0.60	-
20	27.2	27.7	100.0	14	-	-	-	-	1	56	75	4	15	M12	0.72	0.79	-
25	34.0	34.5	125.0	14	-	-	-	-	1	67	90	4	19	M16	1.12	1.22	-
32	42.7	43.2	135.0	16	-	-	-	-	2	76	100	4	19	M16	1.47	1.66	-
40	48.6	49.1	140.0	16	-	-	-	-	2	81	105	4	19	M16	1.55	1.79	-
50	60.5	61.1	155.0	16	-	-	-	-	2	96	120	4	19	M16	1.86	2.23	-
65	76.3	77.1	175.0	18	-	-	-	-	2	116	140	4	19	M16	2.58	3.24	-
80	89.1	90.0	185.0	18	-	-	-	-	2	126	150	8	19	M16	2.58	3.48	-
(90)	101.6	102.6	195.0	18	-	-	-	-	2	136	160	8	19	M16	2.73	3.90	-
100	114.3	115.4	210.0	18	-	-	-	-	2	151	175	8	19	M16	3.10	4.57	-
125	139.6	141.2	250.0	20	-	-	-	-	2	182	210	8	23	M20	4.73	7.18	-
150	165.2	166.6	280.0	22	-	-	-	-	2	212	240	8	23	M20	6.30	10.10	-
(175)	190.7	192.1	305.0	22	-	-	-	-	2	237	265	12	23	M20	6.75	11.80	-
200	216.3	218.0	330.0	22	-	-	-	-	2	262	290	12	23	M20	7.46	8.00	-
(225)	241.8	243.7	350.0	22	-	-	-	-	2	282	310	12	23	M20	7.70	15.80	-
250	267.4	269.5	400.0	24	36	288	292	6	2	324	355	12	25	M22	11.80	22.60	12.70
300	318.5	321.0	445.0	24	38	340	346	6	3	368	400	16	25	M22	12.60	27.80	13.80
350	355.6	358.1	490.0	26	42	380	386	6	3	413	445	16	25	M22	16.30	36.90	18.20
400	406.4	409.0	560.0	28	44	436	442	6	3	475	510	16	27	M24	23.20	52.10	25.80
450	457.2	460.0	620.0	30	48	496	502	6	3	530	565	20	27	M24	29.30	68.40	33.40
500	508.0	511.0	675.0	30	48	548	554	6	3	585	620	20	27	M24	33.30	81.60	38.00
(550)	558.8	562.0	745.0	32(34)	52	604	610	6	3	640	680	20	27	M30	42.90	105(112)	49.40
600	609.6	613.0	795.0	32(36)	52	656	662	6	3	690	730	24	33	M30	45.40	120(134)	52.60
(650)	660.4	664.0	845.0	34(38)	56	706	712	6	3	740	780	24	33	M30	51.80	144(161)	60.20
700	711.2	715.0	905.0	34(40)	58	762	770	6	3	800	840	24	33	M30	59.00	176(196)	70.20
(750)	762.0	766.0	970.0	36(44)	62	816	824	6	3	855	900	24	33	M30	72.80	214(248)	86.50
800	812.8	817.0	1020.0	36(46)	64	868	876	6	3	905	950	28	33	M30	76.00	249(286)	92.00
(850)	863.6	868.0	1070.0	36(48)	66	920	928	6	3	955	1000	28	33	M30	80.10	(330)	98.70
900	914.4	919.0	1120.0	38(50)	70	971	979	6	3	1005	1050	28	33	M30	88.90	(377)	110.00
1000	1016.0	1021.0	1235.0	40(56)	74	1073	1081	6	3	1110	1160	28	39	M36	109.00	(512)	133.00
1100	1117.6	1122.0	1345.0	42(62)	95	1175	1185	8	3	1220	1270	28	39	M36	131.00	(675)	175.00
1200	1219.2	1224.0	1465.0	44(66)	101	1278	1290	8	3	1325	1380	32	39	M36	163.00	(854)	215.00
1350	1371.6	1376.0	1630.0	48(74)	110	1432	1450	8	3	1480	1540	36	45	M42	204.00	(1180)	274.00
1500	1524.0	1529.0	1795.0	50(82)	123	1585	1605	8	3	1635	1700	40	45	M42	248.00	(1590)	340.00

Type of JIS B 2220 10K Flanges

JIS B 2220 10K Flanges Weld Neck	JIS B 2220 10K Flanges Threaded
JIS B 2220 10K Flanges Pn 2.5	JIS B 2220 10K Flanges Pn 30
JIS B 2220 10K Flanges Pn 60	JIS B 2220 10K Flanges Pn 100
JIS B 2220 10K Flanges Pn 250	JIS B 2220 10K Flanges Pn 320
JIS B 2220 10K Flanges CF8	JIS B 2220 10K Flanges CF3
JIS B 2220 10K Flanges CF8M	JIS B 2220 10K Flanges CF3M
JIS B 2220 10K Flanges Loose	JIS B 2220 10K Flanges Ring Type Joint
JIS B 2220 10K Flanges Pn16	JIS B 2220 10K Flanges Flat Face
JIS B 2220 10K Flanges Pn10	JIS B 2220 10K Flanges Slip On
JIS B 2220 10K Flanges Pn40	JIS B 2220 10K Flanges Rtj 900
JIS B 2220 10K Flanges Pn 160	JIS B 2220 10K Flanges Rtj
JIS B 2220 10K Flanges Pn 64	JIS B 2220 10K Flanges Npt
JIS B 2220 10K Flanges Forged	JIS B 2220 10K Flanges With 1/2 Npt
JIS B 2220 10K Flanges Socket Weld	JIS B 2220 10K Flanges With Threaded Hole
JIS B 2220 10K Flanges Blind	JIS B 2220 10K Flanges Weight 150#
JIS B 2220 10K Flanges Square	JIS B 2220 10K Flanges Rtj 1500
JIS B 2220 10K Flanges Dn150 Pn16	JIS B 2220 10K Flanges Jis 5k
JIS B 2220 10K Flanges Din 2527	JIS B 2220 10K Flanges Jis B2220
JIS B 2220 10K Flanges Din En 1092-1	JIS B 2220 10K Flanges Jis 10k
JIS B 2220 10K Flanges Din 2633	Kf JIS B 2220 10K Flanges
JIS B 2220 10K Flanges Din 2576	JIS B 2220 10K Flanges B16.47
JIS B 2220 10K Flanges Expander	JIS B 2220 10K Flanges Groove & Tongue

JIS B 2220 Flanges Applications

Oil and Gas Processing	Dairy and Food Processing
Desalination	Pesticides
Pulp and Paper	Sugar Factory
Energy industries	Power Plants
Ship Building	Fertilizers
Machine Building	Nuclear
Pharmaceuticals	Chemicals
Textile Machinery	Synthetic Fibers
Construction	Modern Architecture
Refinery & Petrochemicals	Water treatment facilities

JIS B 2220 Flanges Marking

Every Standards have clearly requirements for steel flanges’ marking style, usually the marking words include seller’s Logo, buyer’s Logo (OEM), standard number, flange’s type, flange’s pressure, flange’s size, flange’s material, place of origin, heat number and other words for convenient to trace. If the flanges repaired by welding, it must mark on flanges showing this flange repared by welding. If the flange’s dimensions (OD, ID, PCD, Thickness, Holes number, Holes diameter, Tolerance etc) are different with the normal standard, it also must mark on flanges where it is different with normal ones. Another important place is heat number marking, it is the tracing base for every piece flange, and from the heat number we can trace to the beginning of raw material import.

The Marking Style for European Standards Flanges, DIN, UNI, EN 1092-1 norms etc
LOGO, EN 1092-1, TYPE 01, PN16, DN80, 88.9, P265GH, HEAT NUMBER
The Marking Style for ANSI, ASME Standards Flanges, ANSI, ASME, AWWA norms etc LOGO, ASME B16.5, CLASS 150#, SLIP-ON RF, A105, HEAT NUMBER
The Marking Style For JIS, KS norms etc, special with KS Mark
LOGO, JIS B2220, 5K, 80A, SOP, SF440A, HEAT NUMBER, KS MARK
The Marking Style for BS 4504 norms etc
LOGO, BS 4504, WELD NECK, PN40, DN80, RSt37.2, HEAT NUMBER
The Marking Style for GOST 12820, GOST 12821 norms etc
LOGO, GOST 12820, PN1.6MPA, DN80, Q235B, HEAT NUMBER
The Marking Style for SABS 1123, SANS 1123 norms etc
LOGO, SABS 1123, CLASS 4000/3, NB80, A105, HEAT NUMBER

JIS B 2220 Flanges for Shipping, Handling, and Packaging

Carbon Steel JIS B 2220 Flanges and Stainless Steel Socket Weld Flanges are delivered with or without surface protection, as determined by the manufacturer.

The company delivers JIS B 2220 Flanges in standard packaging, without surface protection or end protectors (caps). Special packaging, protective covers, and end protectors (caps) can be agreed upon.
